10CBM 25bar Middle Pressure Screw Air Compressor Manufacture
Pharmaceutical Industry
GooDSeaA 2-stage Oil-injected rotary screw air compressors provide
a reliable air supply of up to 20-30bar for high-pressure
applications in the toughest working conditions, for example Bottle
blowing (PET), Pharmaceutical industry, Food industry, Rubber tire
manufacturing, Hydropower, Well drilling, Military, Biological and
Chemical industry and many more applications.
Technical Data
High Pressure Screw Air Compressor |
Model | SE110W-20 | Note |
Free air delivery (m3/min) | 11.6 | 409.48cfm |
Max working pressure (bar) | 20 | 2.0Mpa |
Power (kW) | 110 | 150hp |
Voltage (V/P/Hz) | 380V/3P/50Hz | Voltage can be customized |
Noise level dB(A) | 80 |
|
Cooling method | Water cooling | air cooling is optional |
Drive method | Coupling |
|
Motor protection | IP55,F |
|
Suction air temperature (℃) | ≦50 |
|
Outlet temperature (℃) | Ambient Tem. + 8~10℃ |
|
Compressed air control method | Automatic(0-100%) |
|
Control method | PLC Intelligent | English |
Oil content | 1~3ppm |
|
Connection (mm) | DN 40 |
|
Dimensions (L×W×H) mm | 2466*1900*1918 |
|
Weight (Kg) | 2900 | |
Features & Benefits
The combination of the screw compressor and high-pressure booster
enables a high level of free air delivery with compact dimensions.
The compression process involves 2 stages, keeping compression
temperatures to a minimum.
Cooling of valve heads reduces thermal load: For minimum wear
Installation even under the most difficult ambient conditions:
Thanks to dedicated water cooling of the compressor block
Low compression temperatures and operating temperatures: thanks to
a multi-stage compression process
Fully equipped: with soft starting and Inverter
By using targeted water cooling between the interstage and
afterstage coolers and valve heads, the system enables the majority
of the heat produced to be absorbed by the cooling water.
As a result, these industrial high-pressure compressors require
very little maintenance and achieve long service lives. At the same
time, they are quieter than comparable air-cooled compressors and
designed specifically for continuous use in industrial applications
(heavy-duty use).
More Models
| MODEL | POWER | AIR FLOW m3/min | PRESSSURE bar | OUTLET CONNECTION | WEIGHT kg | DIMENSION L*W*H mm |
| kw | hp |
SE90W-20 SE90W-25 | 90 | 120 | 9.2 8.5 | 20 25 | DN 40 | 2750 | 2466*1900*1918 |
SE110W-20 SE110W-25 | 110 | 150 | 11.6 9.7 | 20 25 | DN 40 | 2900 | 2466*1900*1918 |
SE132W-20 SE132W-25 SE132W-30 | 132 | 180 | 13.0 11.8 10.5 | 20 25 30 | DN 50 | 3200 | 2466*1900*1918 |
| SE160W-20 | 160 | 220 | 15.5 | 25 | DN 50 | 3850 | 2850*1950*1950 |
SE200W-20 SE200W-25 | 200 | 270 | 21.0 18.8 | 20 25 | DN 65 | 4200 | 2980*2100*1950 |
SE250W-20 SE250W-25 | 250 | 340 | 25.0 22.0 | 20 25 | DN 65 | 4500 | 3250*2250*2050 |
Note: the above listed are of our standard models. For different needs,
the special design service is available. Welcome to pre-sales
technical consultation at any time.

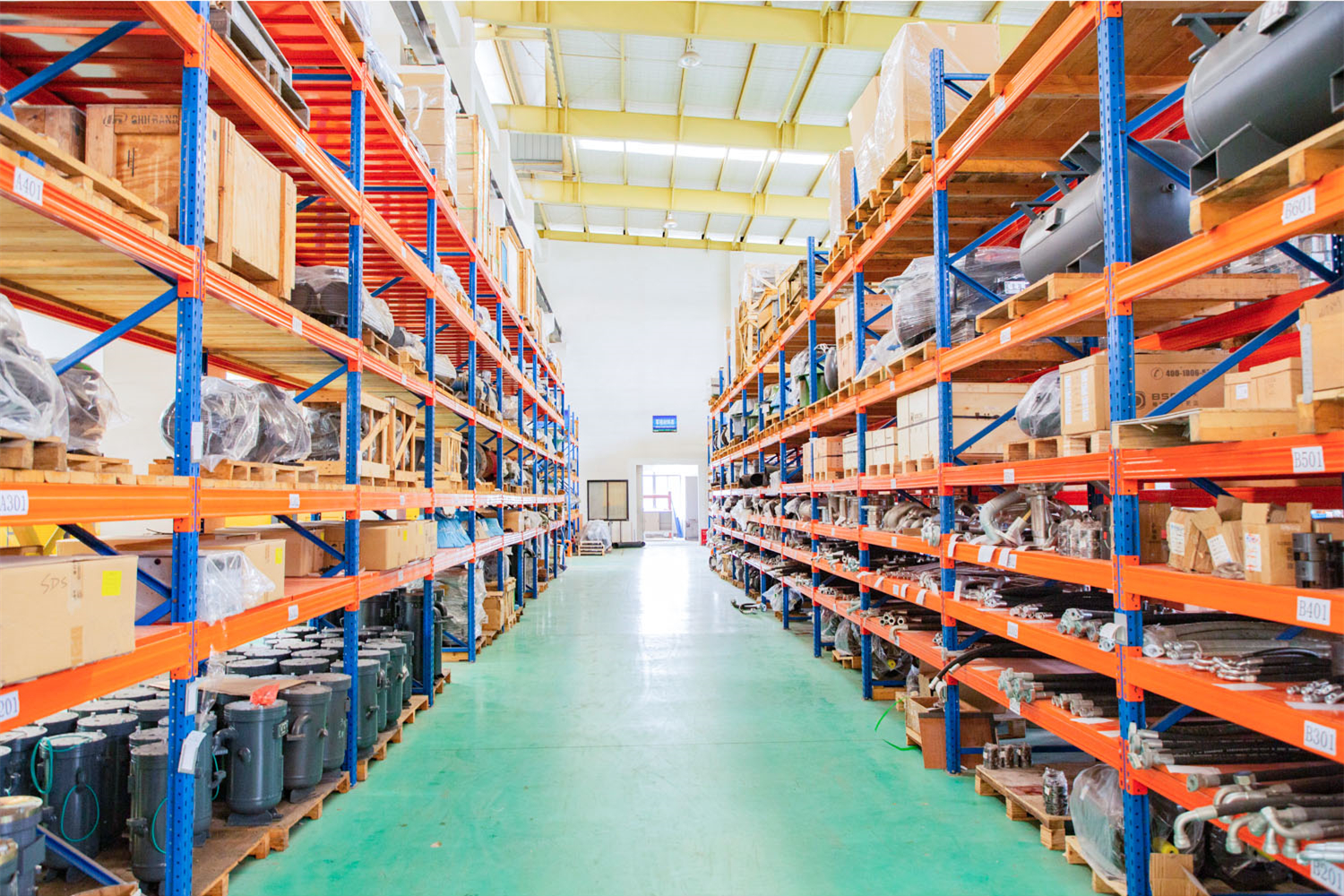

GooDSeaA Workshop

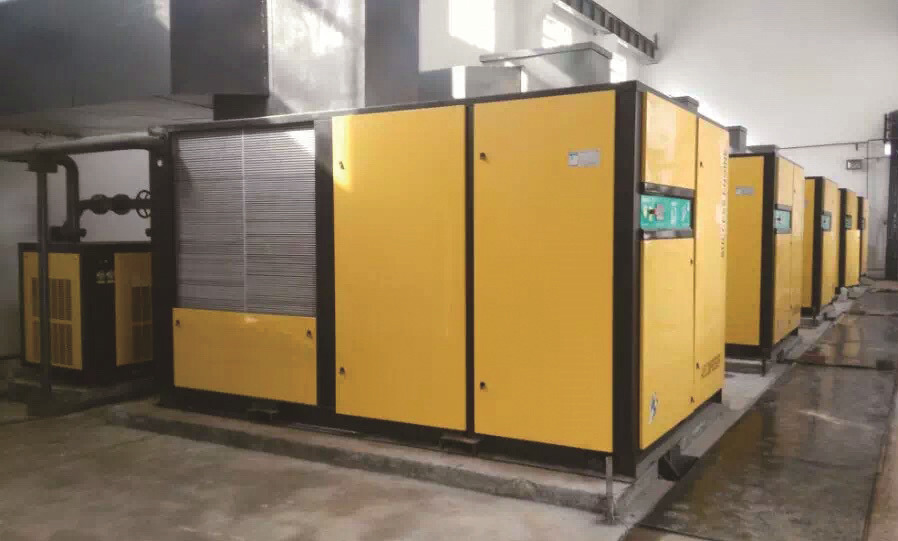

User Site
