10Bar 11kw 15hp Single-stage Rotary Oil Free Air Compressor
Variable Speed Drives (VSD)
11-250KW 15-400 HP
(Energy efficiency and durability)
1. Features of 10Bar 11kw 15hp Single-stage Rotary Oil Free Air Compressor
-High quality stainless steel case with no corrosion risk inside
and outside the head
-High-performance grease bearings in the mechanical seal between
the shaft and the bearing design of a room to keep the compression
chamber clean, to prevent compression chamber water vapor and
vacuum pressure on the bearing and improve reliability
-The water filter is the standard for the water circulation system
to keep the system clean
-Water filter is standard in all air compressor. The main function
is to filter the lubricating water to ensure the supply of clean /
fresh lubricating water.
2. Advantages of GooDSeaA Company
Our company is the manufacturer of turbine compressor/blower/vacuum
pump, also is the provider of screw air compressor/blower/vacuump
pump, including oil-injected and oilless type, with following
qualifications:
- 1. We entered the screw air compressor industry ever since 1980s
as an screw air compressor agent, and our company was established
in the year of 2004.
- 2. Passed ISO9001:2015 quality system, CE certification, and TUV
certification.
- 3. Abundant experience serving overseas markets, our company has
been exporting our products to over sixty countries, like Canada,
the United States, Russia, Portugal, Poland, Hungary, Turkey, South
Africa, India, Singapore, the united Arab Emirates, Egypt,
Indonesia, Pakistan, Vietnam, Brazil, Peru, Chile, Argentina etc.
- 4. Working with us, you can lower your cost, as we are factory
direct and have the economy of scale, also provide OEM service.
3. Specifications
GoodSeaA 37kw 50hp Permanent Magnet Motor oil free screw air compressor |
Model | ZW37A |
Free air delivery (M3/min) | 6.2 m³/min 5.8 m³/min |
Max Working pressure (bar) | 7bar 10bar |
Power (kW) | 37kw (50hp) |
Cooling Method | Air Cooled |
Voltage (V/P/Hz) | 380V/3P/50Hz (can be customized) |
Motor Speed (rpm) | 2950 |
Protection Degree | TEFC, IP55 |
Motor Efficiency | 95% |
Drive Method | coupling |
Start Mode | Variable Frequency |
Control System | PLC |
Water Softening Equipment | Yes |
Discharge Temperature | 30～50℃ |
Compressed Air Control Method | Automatic(0-100%) |
Noise level dB(A) | 71 |
Connection (mm) | Rp 1 1/2 |
Dimensions (L×W×H) mm | 1760x1160x1500 |
Weight (Kg) | 1200 |
4. Advantages and Disadvantages Between Water Lubrication and Dry
Type Oil-free compressor
No. | Description | Water Lubricant | Dry Type |
1 | Compression Stage | Single stage | Two stage |
2 | RPM | 2980r/min | 18000r/min |
3 | Running Temperature | Below50℃ | Above200℃ |
4 | Air Quality | System without oil | System needs oil |
5 | Lubricating Medium | Pure water | Dry friction |
6 | Energy Efficiency | Above Lever 2 | Below Lever 3 |
5. The other Models
| Model | Power (kw) | Pressure (bar) | Air Flow (m3/min) | Noise Level dB(A) | Outlet Connection | Weight (kg) | Dimension (LxWxH)mm |
ZW11A-7
ZW11A-10 | 11 | 7
10 | 1.6
1.4 | 66 | Rp 3/4 | 460 | 1100x845x1260 |
ZW15A-7 ZW15A-10 | 15 | 7 10 | 2.5 2.0 | 67 | Rp 3/4 | 620 | 1260x900x1360 |
ZW18A-7
ZW18A-10 | 18 | 7
10 | 3.0
2.5 | 67 | Rp 3/4 | 750 | 1520x1060x1450 |
ZW22A-7
ZW22A-10 | 22 | 7
10 | 3.6
3.0 | 68 | Rp 1 | 840 | 1520x1060x1450 |
ZW37A-7
ZW37A-10 | 37 | 7
10 | 6.2
5.8 | 71 | Rp 1 1/2 | 1010 | 1760x1160x1550 |
ZW45W-7 ZW45W-10 | 45 | 7 10 | 8.2 6.8 | 73 | Rp 2 | 930 | 1900x1250x1340 |
ZW55W-7
ZW55W-10 | 55 | 7
10 | 10.0
9.0 | 74 | Rp 2 | 970 | 1900x1250x1340 |
ZW75W-7
ZW75W-10 | 75 | 7
10 | 13.0
10.0 | 75 | Rp 2 | 1020 | 1900x1250x1340 |
ZW90W-7
ZW90W-10 | 90 | 7
10 | 15.0
12.8 | 76 | Rp 2 | 2050 | 2200x1600x1700 |
ZW110W-7
ZW110W-10 | 110 | 7
10 | 20.0
17.0 | 78 | DN 80 | 2330 | 2200x1600x1700 |
ZW132W-7
ZW132W-10 | 132 | 7
10 | 23.0
19.0 | 80 | DN 80 | 2560 | 2200x1600x1700 |
ZW160W-7
ZW160W-10 | 160 | 7
10 | 26.0
22.6 | 82 | DN 80 | 3000 | 2500x1800x1700 |
ZW250W-7
ZW250W-10 | 250 | 7
10 | 40.0
36.0 | 85 | DN 100 | 45000 | 3000x2100x2000 |
6. FAQ
Q: Are you a factory or trading company?
A: We are the professional air compressor/vacuum pump/ blower
manufacturer.
Q: Where does your company and factory locate in? How can I visit
you?
A: Our company locates in No.666, Xinbo Road, Maogang Town,
Songjiang District, Shanghai City 201606, China. It takes about one
hour from Shanghai Pudong airport or Hongqiao Airport to our
company.
Q: What does your company do regarding quality control?
A: Quality always enjoys the top priority. GoodSeaA attaches great
importance to quality control from beginning to the end.
Q: What is your after-sale service?
A: The guarantee period is 12 months from the date of the machine
installation or 15 months from the day of machine delivery. We will
take full responsibilities for the charges caused by the defects
during the guarantee period(This warranty does not cover human
damage or misuse of product).
Q: Do you offer consumables and wearing parts, too?
A: We supply all the necessary spare parts and wearing parts for
all equipments and on time.
Q: Which countries have you exported your products to?
A: Our group has been exporting our products to over sixty
countries, like Canada, the United States, Russia, Portugal,
Poland, Hungary, Turkey, South Africa, India, Singapore, the united
Arab Emirates, Egypt, Indonesia, Pakistan, Vietnam, Brazil, Peru,
Chile, Argentina etc.

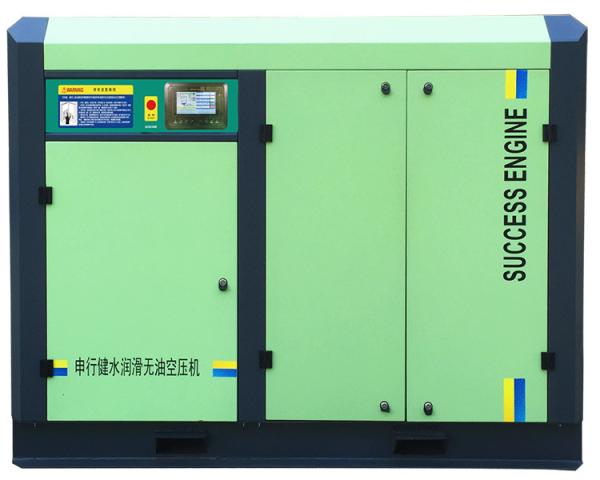

7. Machine Photos
8. Our workshop
