110 132 KW Oil Free Different Medium Pressure Air Compressor
Constant Speed & Variable Speed Drives (VSD)
90-250KW 125-400 HP
(Energy efficiency and durability, energy savings up to 15-30% on
full-load)
1. Features of 110 132 KW Oil Free Different Medium Pressure Air Compressor
1. Permanent Magnetic Motor.
2. 95.9%-96.3% of motor efficiency.
3. Low noise and low vibration
4. 32% of Energy saving with VFD technology.
5. Intelligent control system
6. Rugged cabinet with galvanized steel
7. Baosi host and SKF bearings
8. Easy for installation and service.
2. Technical Parameter
MODEL | Power (kW) | Pressure (bar) | AIR FLOW (m3/min) | OUTLET CONNCTIOEN | WEIGHT Kg | DIMENSION L×W×H mm |
SE90W-20 SE90W-25 | 90 | 20 25 | 9.2 8.5 | DN 40 | 2750 | 2466x1900x1918 |
SE110W-20 SE110W-25 | 110 | 20 25 | 11.6 9.7 | DN 40 | 2900 | 2466x1900x1918 |
SE132W-20 SE132W-25 SE132W-30 | 132 | 20 25 30 | 13.0 11.8 10.5 | DN 50 | 3200 | 2466x1900x1918 |
SE160W-25 | 160 | 25 | 15.5 | DN 50 | 3850 | 2850x1950x1950 |
SE200W-20 SE200W-25 | 200 | 20 25 | 21.0 18.8 | DN 65 | 4200 | 2980x2100x1950 |
SE250W-20 SE250W-25 | 250 | 20 25 | 25.0 22.0 | DN 65 | 4500 | 3250x2250x2050 |
Baosi Air end: Level 1 energy efficiency standard, latest rotors with bigger
diameter and low rotating speed, high quality SKF heavy duty type
loading bearing and three special oil seals guaranteeing the high
efficiency, reliability and durability.
Precise Control: Personalized intelligent control system, Intuitive Intellects
controller gives you complete, fingertip access to your compressor, including easily adjustable operating parameters and time-saving
on-board diagnostics.
Less-Leakage Design: Selection of high durability, strong bearing capacity of SKF
heavy-duty bearing to ensure that the core components withexcellent reliability and durability. Using O-ring fittings
significantly reduces the potential leakage problems associated
with conventional threaded fittings.
Flexible Design Options: Air-cooled or water-cooled, Standard and VSD type, Voltage &
Frequency customized, Low Pressure (3～5 Bar)Softstarting option, mixed flow system temperature control valve.
3. Company Introduction
GooDSeaA focuses on providing a complete solution to produce clean
and dry compressed air. Simplicity in just connecting an outlet
pipe, drain pipe, and electrical cables to the system saves cost
and space.
Established in 2004, with a history nearly 20 years. We produce
about 1000 models of compressed air products with full range mainly
from 4KW to 650KW screw type air compressors, 130KW to 9100 KW
turbo air compressors two series.

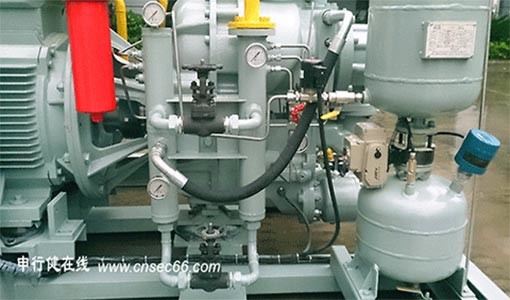

4. Product Pictures
5. Our Factory
