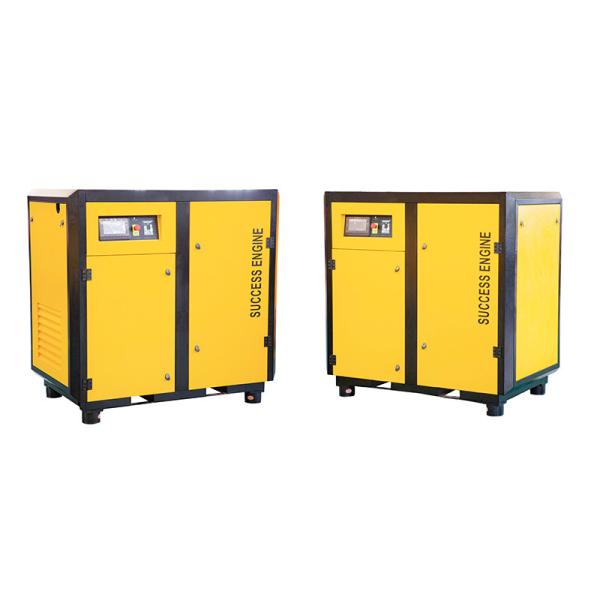

Frequency conversion stationary 2 stage screw air compressor
Constant Speed & Variable Speed Drives (VSD)
22-315KW 20-450 HP
(Energy efficiency and durability, energy savings up to 15-30% on
full-load)
1. Introduction & Features
GooDSeaA is specialized in manufacturing permanent magnet variable
speed and two stage compression permanent magnet variable speed air
compressor in the market. Established in 2004, with a history nearly 20 years, our products
have been exported to more than 100 countries in the world.
Characteristics of frequency conversion stationary 2 stage screw
air compressor
Low noise
Smooth speed adjustment
Energy saving
High discharge capacity
Dual inverter control
2. Technical Parameter
| MODEL | Power (kW) | Pressure (bar) | AIR FLOW (m3/min) | OUTLET CONNCTIOEN | WEIGHT Kg | DIMENSION L×W×H mm |
SE22AE-7 SE22AE-10 SE22AE-12.5 | 22 | 7 10 12.5 | 4.20 3.80 3.20 | Rp 1 1/4 | 680 | 1470x860x1340 |
SE37E-7 SE37AE-10 SE37AE-12.5 | 37 | 7 10 12.5 | 7.10 6.60 5.80 | Rp 1 1/2 | 920 | 1610x1000x1470 |
SE55AE-7 SE55AE-10 SE55AE-12.5 | 55 | 7 10 12.5 | 11.60 11.20 9.10 | Rp 2 | 1620 | 2000x1300x1680 |
SE75AE-7 SE75AE-10 SE75AE-12.5 | 75 | 7 10 12.5 | 15.80 14.20 11.60 | Rp 2 | 1980 | 2000x1300x1680 |
SE90AE-7 SE90AE-10 SE90AE-12.5 | 90 | 7 10 12.5 | 20.50 17.60 14.20 | DN 65 | 2600 | 2466x1900x1918 |
SE110AE-7 SE110AE-10 SE110AE-12.5 | 110 | 7 10 12.5 | 24.50 20.00 17.20 | DN 80 | 2900 | 2466x1900x1918 |
SE132AE-7 SE132AE-10 SE132AE-12.5 | 132 | 7 10 12.5 | 27.60 23.50 19.60 | DN 80 | 3450 | 2766x1900x1918 |
SE160AE-7 SE160AE-10 SE160AE-12.5 | 160 | 7 10 12.5 | 33.50 29.00 23.20 | DN 80 | 3800 | 2766x1900x1918 |
SE185AE-7 SE185AE-10 SE185AE-12.5 | 185 | 7 10 12.5 | 39.50 32.50 27.80 | DN 100 | 3900 | 3800x2150x2100 |
SE220A(W)E-7 SE220A(W)E-10 SE220A(W)E-12.5 | 220 | 7 10 12.5 | 46.60 41.50 38.20 | DN 100 | 5800 | 3800x2150x2100 |
SE250A(W)E-7 SE250A(W)E-10 SE250A(W)E-12.5 | 250 | 7 10 12.5 | 52.00 45.50 40.20 | DN 125 | 6600 | 4200x2150x2100 |
SE280A(W)E-7 SE280A(W)E-10 SE280A(W)E-12.5 | 280 | 7 10 12.5 | 60.00 51.00 43.50 | DN 125 | 7200 | 4200x2150x2100 |
SE315A(W)E-7 SE315A(W)E-10 SE315A(W)E-12.5 | 315 | 7 10 12.5 | 66.00 60.00 53.00 | DN 125 | 7800 | 4200x2150x2100 |

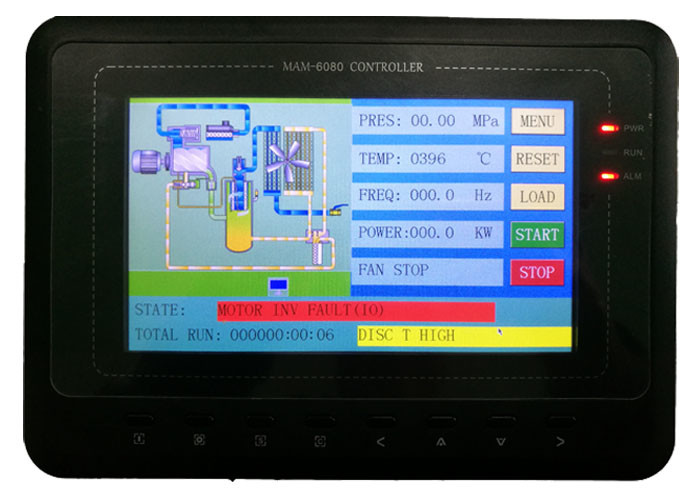

Precise Control: Personalized intelligent control system, Intuitive Intellects
controller gives you complete, fingertip access to your compressor, including easily adjustable operating parameters and time-saving
on-board diagnostics.
Less-Leakage Design: Selection of high durability, strong bearing capacity of SKF
heavy-duty bearing to ensure that the core components withexcellent reliability and durability. Using O-ring fittings
significantly reduces the potential leakage problems associated
with conventional threaded fittings.
Flexible Design Options: Air-cooled or water-cooled, Standard and VSD type, Voltage &
Frequency customized, Low Pressure (3～5 Bar)Softstarting option, mixed flow system temperature control valve.
