75kw PM VSD 100HP Soundless Direct Driven Screw Air Compressor
1. Parameters of 75kw PM VSD 100HP Soundless Direct Driven Screw
Air Compressor
Working Pressure: 10bar
Air Delivery: 2.6- 11.8m3/min
Motor Power: 75kw/100hp
Type of Driving: Direct Driven
Type of Cooling: Air Cooling/Water Cooling
Dimension: 2000*1200*1585mm
Weight: 1960kg
Output pipe Diameter: Rp 2
2. Features of 75kw PM VSD 100HP Soundless Direct Driven Screw Air
Compressor
Large displacement: Displacement 10% higher than ordinary piston
compressor.
Energy-saving: Compared with piston air compressor, this series of
models are for the new national standard two energy efficiency
products, excellent energy saving.
Easy to operate: 24 hours unattended all day work, free load
automatically start, full load automatically shut down.
Strong stability:Under long time working, displacement and pressure
stable, no crash phenomenon, low failure rate.
3. Technical Data
75kw 10bar Permanent Magnet Varibale Frequency Screw Air Compressor |
Type | Permanent Magnet VFD type | NOTE |
Model | SEYC75A-10/D |
|
Free air delivery (m3/min) | 2.6-11.8 | 420cfm |
Max working pressure (bar) | 10 | 145psi / 0.8Mpa |
Power (kW) | 75 | 100hp |
Noise level dB(A) | 75 |
|
Cooling method | Air cooling |
|
Oil content (ppm) | 1～3 |
|
Driver Motor | 380V/3P/50Hz | can be customized |
Protection degree | IP55, F |
|
Driving mode | Inverter | variable frequency |
Control system | Intelligent Touch Screen PLC |
|
Compressed air control method | Automatic(0-100%) |
|
Discharge Temperature | Ambient temp+8～10℃ |
|
Connection | Rp2 |
|
Dimensions (L×W×H) mm | 2000*1200*1585 |
|
Weight (Kg) | 1960 | |
4. Company View
Goodseaa Aviation Technology (Shanghai) Co., Ltd is a wholly-owned
subsidiary of Shanghai Success Engine Compressor Co., Ltd, SUCCESS
ENGINE is a professional manufacturer of rotary screw air
compressor and purifying equipment in China starting in the year of
2004. Our main products are oil-injected screw air compressor,
water-lubricated oil-free screw air compressor, middle pressure
screw air compressor, centrifugal air compressor, vacuum pump,
aeration blower and other auxiliary equipment. The professional
design, manufacture, production of SUCCESS ENGINE compressors
strictly follow the ISO9001 quality managing system which ensures
that every product of SUCCESS ENGINE has reached the international
standard. SUCCESS ENGINE compressors have been exported to Russia,
Kazakhstan, Indonesia, Malaysia, Vietnam, Saudi Arabia and so on.
We can offer compressors customized for wide ranges of pressure and
volume at highly competitive prices.
5.FAQ
1.Whether OEM/ODM or customer’s logo printed is available?
- Yes, acceptable.
2.What's the delivery time?
-Usually 15-30days after received the deposit.
3.Whats your payment terms?
-1)30% TT in advance and balance before the shipment.
-2)100% irrevocable L/C at sight.
-3)Western Union.
The other terms can be discussed.
4.How to control your quality?
-We have professional QC team to control the quality during the
mass production and inspect the products before send out of our
factory.
5.If we don’t have shipping forwarder in China, would you do this
for us?
-We can offer you best shipping line to ensure you can get the
goods timely at best price.
6.I never come to China before, can you be my guide in China?
-Sure, we are glad to be your guide because our company directly
located in Shanghai, which is the most famous city in China. If you
want to come to China, we are happy to provide you one-stop
service, such as book ticket, pick up at the airport, book
hotel,accompany you visit factory.
6. More Models of Direct Driven Screw Air Compressor
(YC=permanent magnet VSD air compressor; VSD= standard VSD air
compressor)

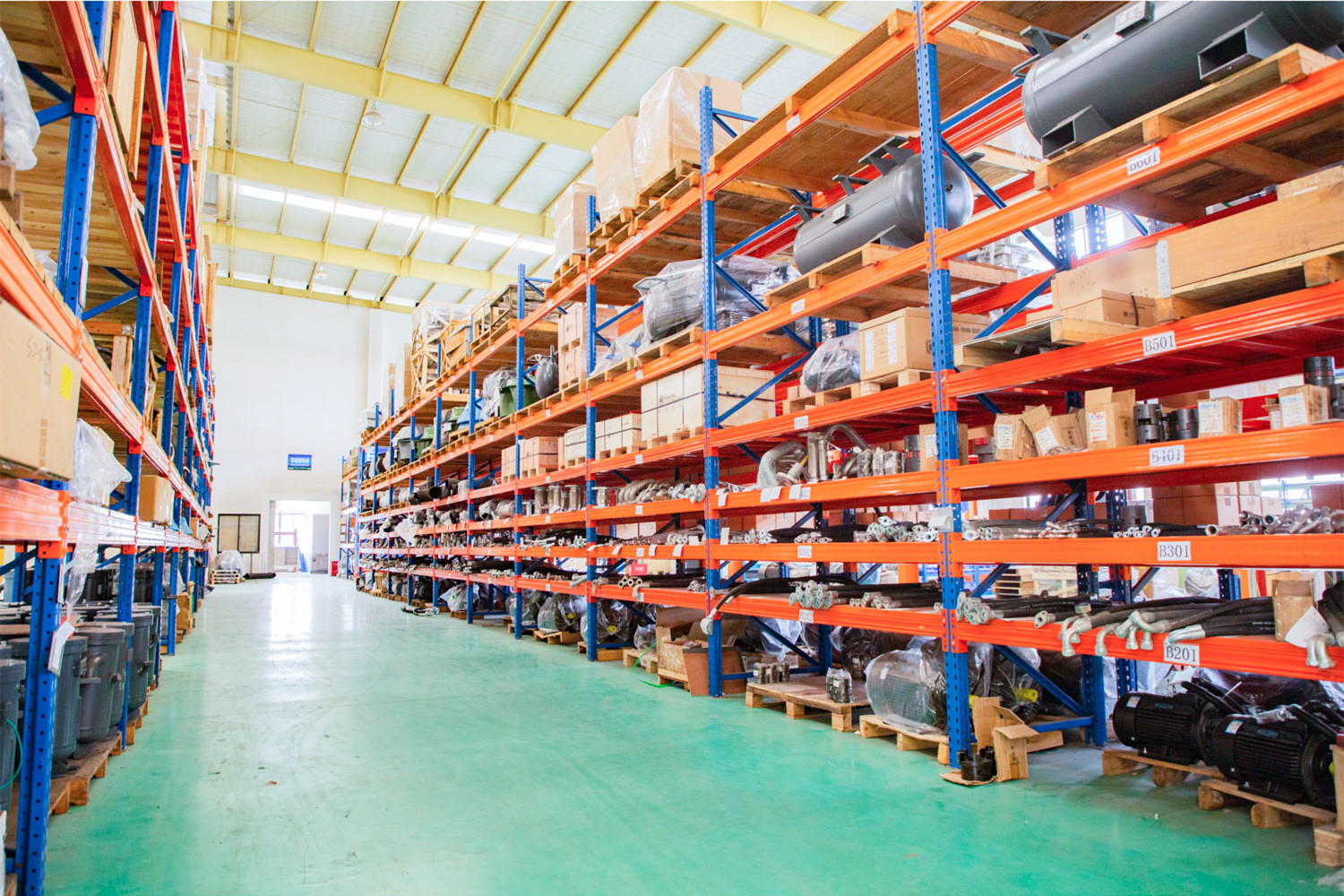

7. GoodSeaA Workshop
