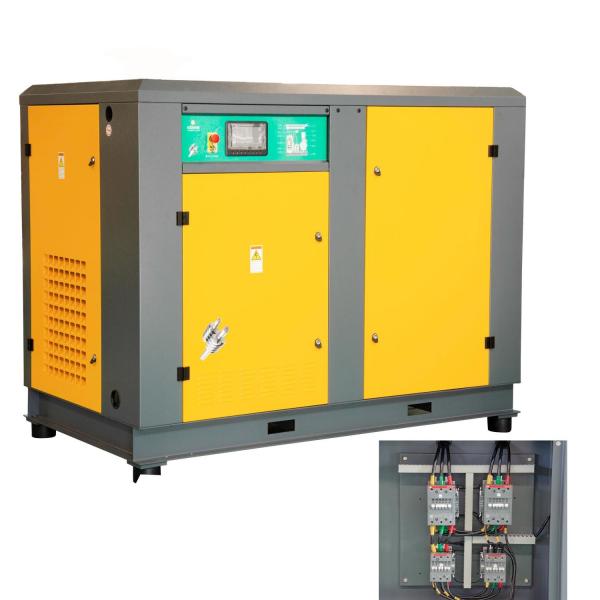

120hp 1.3Mpa Electric PM Motor Inverter Driven Air Compressor
1. Technical Data
120hp 1.3Mpa Permanent Magnet Varibale Frequency Screw Air Compressor |
Type | Permanent Magnet VFD type | NOTE |
Model | SEYC90A-13/D |
|
Free air delivery (m3/min) | 2.8-11.0 | 390cfm |
Max working pressure (bar) | 13 | 188.5psi |
Power (kW) | 90 | 120hp |
Noise level dB(A) | 76 |
|
Cooling method | Air cooling |
|
Oil content (ppm) | 1～3 |
|
Driver Motor | 380V/3P/50Hz | can be customized |
Protection degree | IP55, F |
|
Driving mode | Inverter | variable frequency |
Control system | Intelligent Touch Screen PLC |
|
Compressed air control method | Automatic(0-100%) |
|
Discharge Temperature | Ambient temp+8～10℃ |
|
Connection | Rp2 |
|
Dimensions (L×W×H) mm | 2000*1300*1635 |
|
Weight (Kg) | 2100 | |
2.GoodSeaA PM VSD Air Compressor Advantages
1).Oil filter:
Oil filters are applied to completely remove the impurities in the
lubricating oil,it was easy to replace.
2).Air-end:
Air-end rotors are connect motor with one-shaft structure make it
easy to start operates at low speed,so low in abrasion and
maintenance expenses.
3).Excellent quality of motors:
The servo motors is saving effect than normal motor,base on it
excellent permanent magnet synchronizing variable frequency,it will
exert incomparable energy saving effect than normal inductive motor
when installed with the frequency convectors.
4).Control panel:
Intelltgent microcomputer-based control technology can monitor and
control in all aspects the complete machine following you
instrucitons,remote control realizes unattended operation,and the
user-friendly human-machine interface displays instructions and
parameters in written form also,it can function to self diagnose
faults,give warning and automatically regulate the capacity.
5).The host machine of compressor is of high efficiency and long
life:
The quality of host machine of permanent magnet synchronizing
variable frequency compressor is excellent.The advance molded lines
ensure the minimum specific power.It is designed in the FEM
strength analysis to ensure the stablility and reliable of each
part,and also to realize longterm operation with no faults,low
noise and long life.
3. GoodSeaA PM VSD Air Compressor Features
1. Fantastic Energy Saving, save up to more than 30-40%.
2. Reliable PM motor supplier from China top brand.
3. Oil Cooling Permanent Magnetic Motor.
4. IP55 protection grade & heavy duty air filter, suitable for high
dusty environment.
5.Touch Screen PLC with preset running schedule, more intelligent
control.
6. IE3 Efficiency motor efficiency.
7. Most energy saving mode, Only work at loading.
8. Both main motor and fan motor are inverter control, more
accurate control.
9. Wide frequency range 25%-100%.
10. Premium Magnetic material resist more than 180℃ temp.
11. Direct Taper connection, no transmission power loss, easy
maintenance.
12. Easy for installation and service.
4. More Models
(YC=permanent magnet VSD air compressor; VSD= standard VSD air
compressor)
5.FAQ
1).Are you factory?
-Yes,our factory is located in Shanghai China since year 2004.
2).What's the delivery time?
-Generally,15-30days.
3).What’s the average life of your air compressor?
-12-15years
4. How long is your compressor warranty?
-Usually,1 year /12 Months for whole compressor machine. It can be
extended after negotiation.
5).Are you accept OEM/ODM,mark with client’s logo?
-Yes, it’s available.
6).Whats your payment terms?
-Usually, a).30% TT in advance and balance before the shipment.
b).100% irrevocable L/C at sight. c).Western Union. The other terms
can be discussed.
