IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor

    Buy cheap IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor from wholesalers

    Buy cheap IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor from wholesalers
    • Buy cheap IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor from wholesalers
    • Buy cheap IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor from wholesalers

    IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor

    Ask Lasest Price
    Brand Name : GooDSeaA
    Model Number : SEYC75A-13/D
    Certification : ISO,CE,ASME
    Price : USD10000/pc - USD12000/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100pcs/ Month
    Delivery Time : 15days - 30days
    • Product Details
    • Company Profile

    IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor

    75kw 13bar Air Cooled PM Variable Speed Drive Air Compressor


    1. Company View

    GoodSeaA air compressor VSD series(inverter driven compressor) and YC series(permanent magnetic variable frequency compressor) are new-conception energy-saving product. By varying the speed of the drive motor in accordance to the change of the air capacity required,it regulates the actual power accordingly and thus saves the energy effectively.By adopting the electronic inverter system and the technology of supplying the exact air capacity required and precise pressure controlling,VSD air compressor not only directly reduces energy consumption by 30% but also brings many other benefits,such as stabilizing the network pressure,eliminating the peak current on starting,etc. VSD compressor serves as the best choice for the modern industrial and mining enterprises to save energy.

    IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor


    2. Technical Data

    75kw 13bar Permanent Magnet Varibale Frequency Screw Air Compressor

    Type

    Permanent Magnet VFD type

    NOTE

    Model

    SEYC75A-13/D


    Free air delivery (m3/min)

    2.2-9.8

    345cfm

    Max working pressure (bar)

    13

    188.5psi

    Power (kW)

    75

    100hp

    Noise level dB(A)

    75


    Cooling method

    Air cooling


    Oil content (ppm)

    1~3


    Driver Motor

    380V/3P/50Hz

    can be customized

    Protection degree

    IP55, F


    Driving mode

    Inverter

    variable frequency

    Control system

    Intelligent Touch Screen PLC


    Compressed air control method

    Automatic(0-100%)


    Discharge Temperature

    Ambient temp+8~10℃


    Connection

    Rp2


    Dimensions (L×W×H) mm

    2000*1200*1585


    Weight (Kg)

    1960


    3.FAQ

    1.Whether OEM/ODM or customer’s logo printed is available?

    - Yes, acceptable.


    2.What's the delivery time?
    -Usually 15-30days after received the deposit.


    3.Whats your payment terms?

    -1)30% TT in advance and balance before the shipment.

    -2)100% irrevocable L/C at sight.

    -3)Western Union.

    The other terms can be discussed.


    4.How to control your quality?

    -We have professional QC team to control the quality during the mass production and inspect the products before send out of our factory.


    5.If we don’t have shipping forwarder in China, would you do this for us?

    -We can offer you best shipping line to ensure you can get the goods timely at best price.


    6.I never come to China before, can you be my guide in China?

    -Sure, we are glad to be your guide because our company directly located in Shanghai, which is the most famous city in China. If you want to come to China, we are happy to provide you one-stop service, such as book ticket, pick up at the airport, book hotel,accompany you visit factory.


    4. More Models

    (YC=permanent magnet VSD air compressor; VSD= standard VSD air compressor)

    5. Advantages


    1) No Current Impact during Starting
    The air compressor is started via invert. The maximum starting current is 1.2 times the rated current for power frequency start. Hence, our variable speed air compressor exerts little impact on the grid during starting. It enjoys reduced stress and consequently prolonged service life.


    2) Stable Pressure
    The variable speed air compressor adopts PID for precision speed adjustment. Changes in the air amount of the system will be automatically tracked. The compressor will supply air at a constant pressure, which is the preset desired pressure plus or minus 0.1bar, to reduce power consumption.


    3) High Economical Efficiency
    Throughout the operating life of the air compressor, energy costs account for most of all costs. However, by using VSD, energy consumption is reduced by 30%.Therefore, the energy cost saved by a variable speed air compressor for three years is roughly equivalent to purchase price of the unit.


    4) Variable Flow Control
    Adopt inverter to drive the compressor can adjust the rotation speed of the motor in real time according to the actual air compression. In case of high air consumption, the pressure remains unchanged, but the speed compensates automatically to meet the supply needs. When the air consumption is low, pressure is maintained constant and speed is automatically reduced to supply compressed air which is just enough.

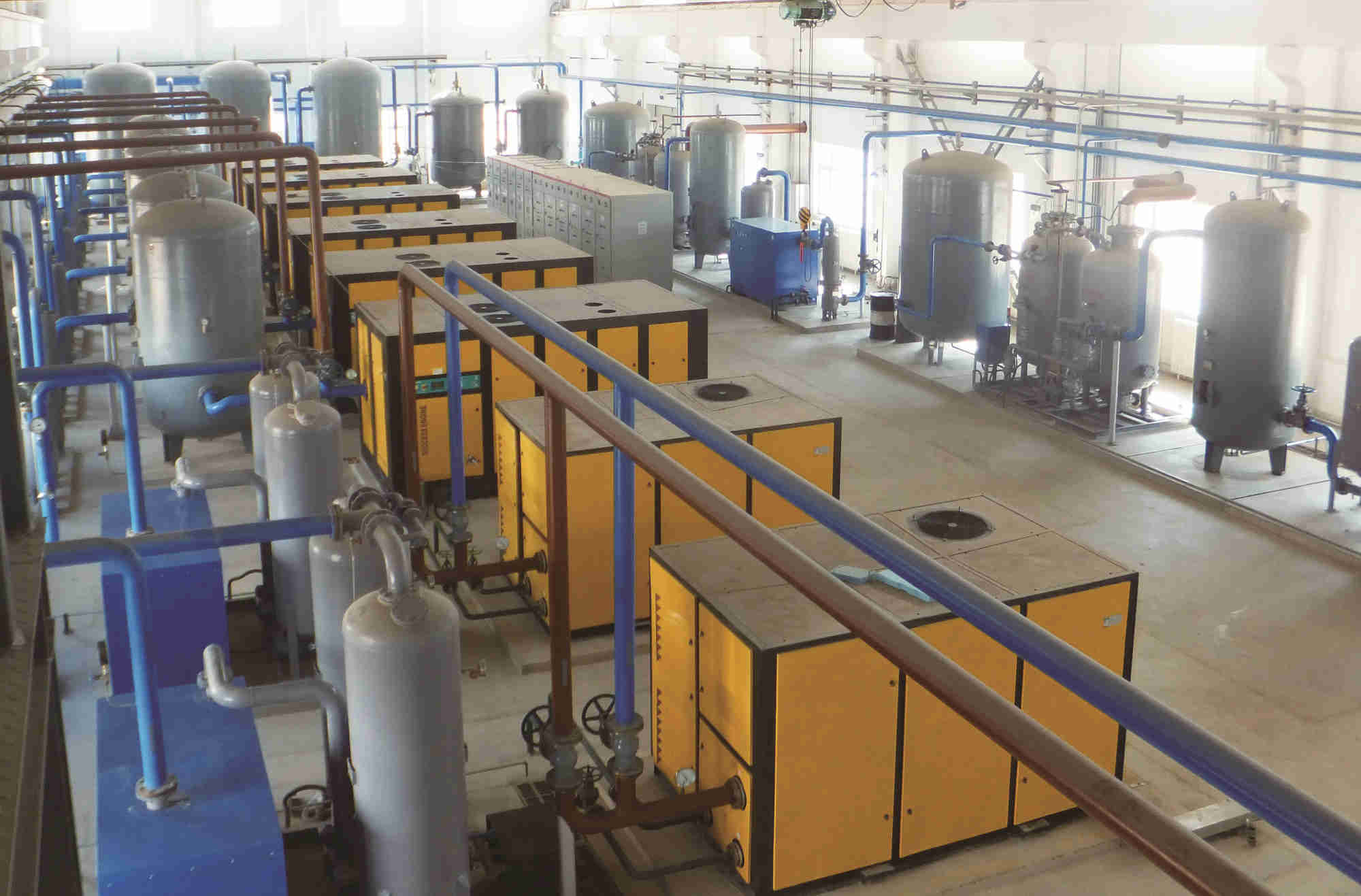

    6. User Site

    IP55 100hp 75kw 13bar Air Cooled PM VFD Air Compressor
