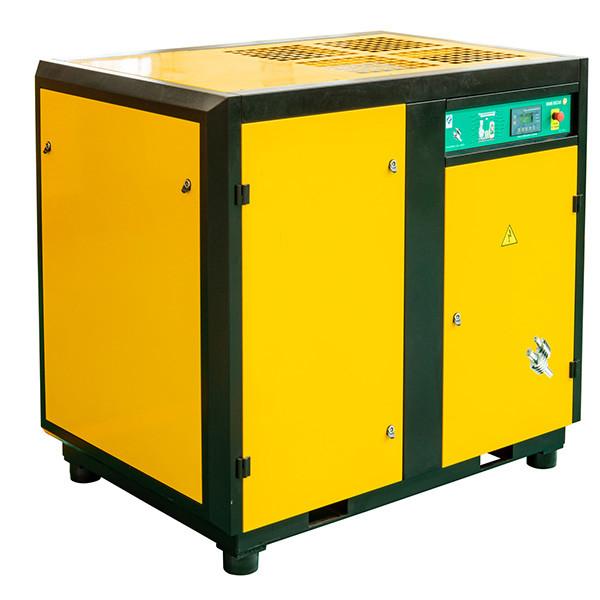

Lubricated 20.5m3/Min 90kw 7bar 2 Stage Air Compressor

Product Categories

Goodseaa Aviation Technology(Shanghai) Co.,Ltd.

Contact Now

Name: Lubricated 205m3Min 90kw 7bar 2 Stage Air Compressor
Brand: GooDSeaA
Price: 1 USD

Add to Cart

90kw 7bar Energy Saving Oil Injected Two Stage Screw Air Compressor

1. Specifications

90kw 7bar two-stage screw air compressor
Model	SE90AE-7	Note
Compressed stage	Two stage	Rotor 2+2
Free air delivery (m3/min)	20.5
Working pressure (bar)	7	0.7Mpa
Power (kw)	90	120hp
Noise level dB(A)	78
Cooling method	air cooling
Oil content (ppm)	1～3
Driver Motor	415V/3P/50Hz	can be customized
Protection degree	IP55, F
Driving mode	Direct Coupling
Control mode	Variable Speed Drive	optional
Control system	Intelligent PLC	Touch screen
Compressed air control method	Automatic(0-100%)
Discharge temperature	Ambient temp+8～10℃
Electrical components	ABB
Connection	DN 65
Dimension (mm)	2500x1800x1800
Weight (Kg)	2600

2. Advantages

Isothermal compression will not produce a lot of heat waste, so it has high energy utilization efficiency.
Internal Leakage Losses are Reduced
Reduced pressure difference across each stage facilitates reduction in leakage losses.
Two stage air compressor airend has higher volume ratio, so it’s compressed air production is higher.
Save power consumption and operation cost.

3. Applications in pharmaceutical

4.More Models

Model	Power (kw)	Pressure (bar)	Air Flow (m3/min)	Outlet connection	Weight (kg)	Dimension *LWH mm*
SEVSD22AE-7 SEVSD22AE-10 SEVSD22AE-12.5	22	7 10 12.5	0.7-4.20 0.5-3.80 0.4-3.20	Rp 1 1/4	680	1470x860x1340
SEVSD37E-7 SEVSD37AE-10 SEVSD37AE-12.5	37	7 10 12.5	1.6-7.10 1.3-6.60 1.0-5.80	Rp 1 1/2	920	1610x1000x1470
SEVSD55AE-7 SEVSD55AE-10 SEVSD55AE-12.5	55	7 10 12.5	2.4-11.60 2.0-11.20 1.5-9.10	Rp 2	1620	2100x1200x1680
SEVSD75AE-7 SEVSD75AE-10 SEVSD75AE-12.5	75	7 10 12.5	3.0-15.80 2.6-14.20 2.2-11.60	Rp 2	1980	2100x1200x1680
SEVSD90AE-7 SEVSD90AE-10 SEVSD90AE-12.5	90	7 10 12.5	3.9-20.50 3.5-17.60 2.8-14.20	DN 65	2600	2500x1800x1800

5. Uersite
