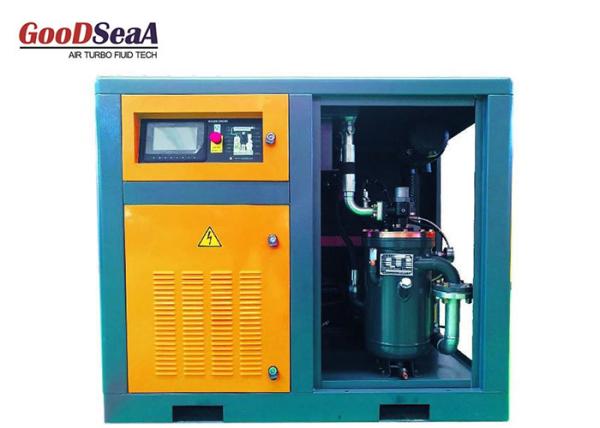

Direct Coupling 1.25Mpa 75kw 100hp Screw Air Compressor

Product Categories

Goodseaa Aviation Technology(Shanghai) Co.,Ltd.

Contact Now

Name: Direct Coupling 125Mpa 75kw 100hp Screw Air Compressor
Brand: GooDSeaA
Price: 1 USD

Add to Cart

75kw 100hp 12.5bar 13bar Two Stage Compression Screw Air Compressor

1. Specifications

75kw 12.5bar two-stage screw air compressor
Model	SE75AE-12.5	Note
Compressed stage	Two stage	Rotor 2+2
Free air delivery (m3/min)	11.6
Working pressure (bar)	12.5	1.25Mpa
Power (kw)	75	100hp
Noise level dB(A)	76
Cooling method	air cooling
Oil content (ppm)	1～3
Driver Motor	400V/3P/50Hz	can be customized
Protection degree	IP55, F
Driving mode	Direct Coupling
Control mode	Variable Speed Drive	optional
Control system	Intelligent PLC	Touch screen
Compressed air control method	Automatic(0-100%)
Discharge temperature	Ambient temp+8～10℃
Electrical components	ABB
Connection	Rp 2
Dimension (mm)	2100x1200x1680
Weight (Kg)	1980

2. Advantages

Isothermal compression will not produce a lot of heat waste, so it has high energy utilization efficiency.
Two stage air compressor airend has higher volume ratio, so it’s compressed air production is higher.
Save power consumption and operation cost.

3. Applications in agriculture

4.More Models

Model	Power (kw)	Pressure (bar)	Air Flow (m3/min)	Outlet connection	Weight (kg)	Dimension *LWH mm*
SEVSD22AE-7 SEVSD22AE-10 SEVSD22AE-12.5	22	7 10 12.5	0.7-4.20 0.5-3.80 0.4-3.20	Rp 1 1/4	680	1470x860x1340
SEVSD37E-7 SEVSD37AE-10 SEVSD37AE-12.5	37	7 10 12.5	1.6-7.10 1.3-6.60 1.0-5.80	Rp 1 1/2	920	1610x1000x1470
SEVSD55AE-7 SEVSD55AE-10 SEVSD55AE-12.5	55	7 10 12.5	2.4-11.60 2.0-11.20 1.5-9.10	Rp 2	1620	2100x1200x1680
SEVSD75AE-7 SEVSD75AE-10 SEVSD75AE-12.5	75	7 10 12.5	3.0-15.80 2.6-14.20 2.2-11.60	Rp 2	1980	2100x1200x1680
SEVSD90AE-7 SEVSD90AE-10 SEVSD90AE-12.5	90	7 10 12.5	3.9-20.50 3.5-17.60 2.8-14.20	DN 65	2600	2500x1800x1800

5. Uersite
