Multi-stage Oilless Centrifugal Turbine Air Gas Compressor Industrial Use

Product Description

GoodSeaA centrifugal compressor system is a military-to-civilian project that uses advanced aero engine technology for civilian equipment to make machines have aviation quality. GoodSeaA compressor is suitable for large air flow situation, and pays attention to the high-performance, high-reliability and high cost-performance of the core turbine components during design and development.

Using the most advanced aerodynamic theory and tools, we can provide customized design according to the users' application occasions, that makes sure the equipment always work in the high-efficiency area, and so that to achieve energy saving and profit increase.

Parameters

Main Components Specification

1. Gear Box

• Horizontally split gearbox

• High -stength alloy steel material

• Diffusers: Vaned (Aluminum/6061T6)

• Shroud: Nodular Iron

• Free of abrasion due to without contact

• High Working Efficiency due to the minimum air leakage

• High Reliability: the simulation of the sealing performance is carried out both statically as well as dynamically.

• Maintenance free design

• Oil Seal: Labyrinth (material: High quality aviation aluminium alloy /6063-T5)

• Air Seal: Labyrinth (material: High quality aviation aluminium alloy /6063-T5)

2. ​Gear speeding up system

• ​Quality Class:AGMA 13

• Manufacturing of Teeth: Hardened (Carcurized) with over 25 years service life

• Pinion shaft material: 17CrNiMo6

• Bull gear Shaft material: 42CrMoA

3. Bearings

• High Speed Radial Bearings : 5-petal tilting-pad type bearing

• High Speed Radial Bearings Material :Babbitt-faced Steel

• Bull gear Bearing:Thrust Bearings

• Bull gear Bearing material: Babbitt-faced Steel

4. Compressor Base Support

• Seismic Precautionary Intensity:Ⅶ Grade

5. Import Guide vane & Outlet venting valve

• At inlet with continuously adjustable electric stepless guide vane (IGV) made of SS304 to achieve very small pressure loss, accurate flow control, and pneumatic stepless continuous regulating vent valve is adopted at the outlet, safe, reliable and quick in response

6. Coupling

• Diaphragm type coupling with protective cover

• Lubricating is not needed

7. High efficiency interstage cooler

• Optimize the runner to minimize the pressure loss

• Efficient heat transfer, compact structure

• Drawer type structure, water goes through the pipe side, air goes through the shell side

• The cooler cores are interchangeable

• Large manhole, easy to enter, clean and maintain

• The intercooler adopts the drawer type heat exchanger structure which is convenient for disassembly and wash cleaning, the water pipe is made of copper alloy and designed according to the temperature rise of 8 ℃. It has high heat transfer efficiency and high corrosion resistance, thus prolonging the service life of the cooler.

• The inner surface of the air flowing of the cooler is treated with anti-corrosion , and the air side pressure drop is less than or equal to 5kpa.

8. Lubrication system

• The whole lubrication system consists of oil level indicator, oil level observation hole, oil tank oil filling hole with differential pressure alarm function of oil filter.

• Spindle driven full flow oil pump and electric auxiliary oil pump

• Oil tank vacuuming system is with high pressure fan typed oil mist filter

• The equipment is with self-heating device which can meet the -30℃～+20℃ temperature environment running condition

9. Lubrication oil tank

• Capacity: lubricating oil stays in the oil tank over 5 minutes.

10. Oil cooler

• Type: Shell and tube type

• Water pipe material: copper alloy

• Special coating ensures long time operation of cooler

11. Electric lube oil heater

• Automatic temperature regulation

12. Lube oil filters

• Type: Corrugated Cellulose

• Filter Precision: ≤10 micron.

13. Oil Pump

• Full Flow Main Oil Pump: Screw type

• Driver: Low Speed Shaft

• Auxiliary oil pump: Screw type

• Driver: Electric Motor

Our Technical Advantages

Under the support of the turbo machinery technology of famous institute and the levitation bearing technology of famous university, we guarantee that the technology of GooDSeaA can get the most advanced ideas,technologies,software and hardware facilities.Through continuous self-research and development, GoodSeaA will leads Chinese civil turbo machinery industry to improve it’s scientific and technological innovation capabilities.

Package & Delivery

Our usual way of packing is in bubble wrap. Meanwhile wooden case packing is also available upon request, but additional fees should be charged accordingly.

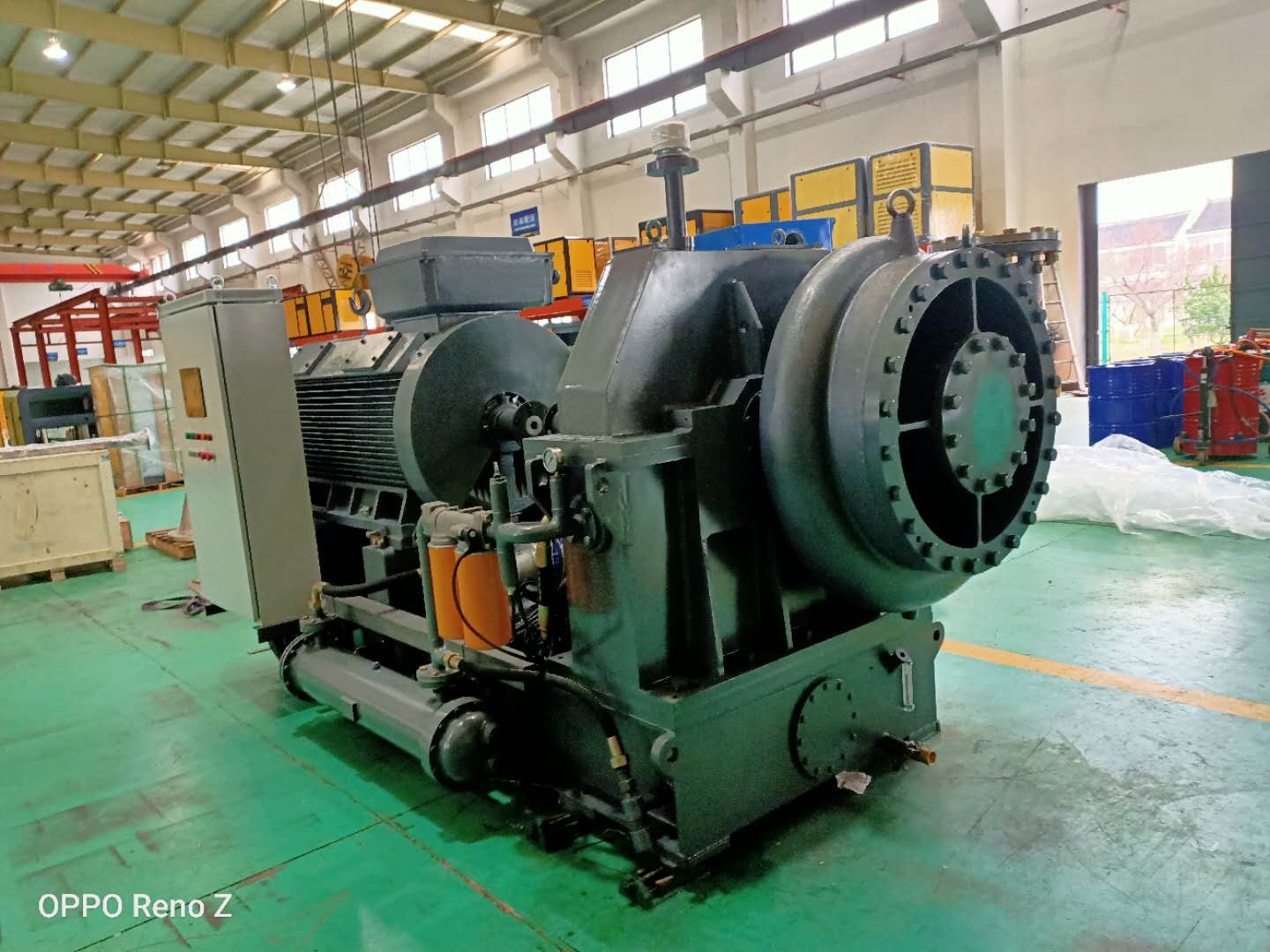

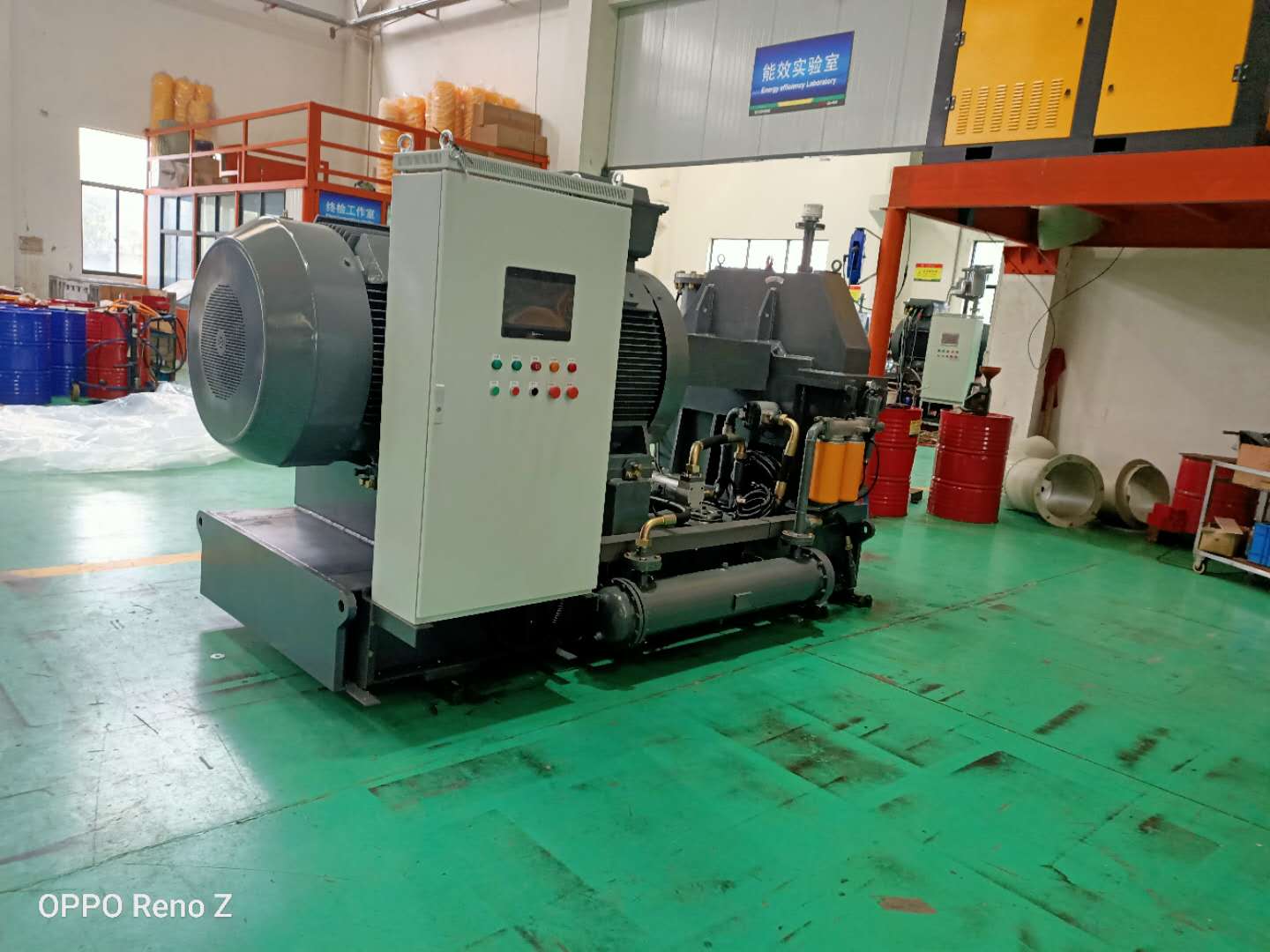

Product Photos

GoodSeaA leverage the resource advantages of SUCCESS ENGINE group, cooperates with Chinese professional aviation universities, turbo machinery universities and levitation bearing Research Institutes, gathers top professional technicians in aviation power and turbo machinery fields,  is committed to create high-quality centrifugal compressor, centrifugal air blower, centrifugal vacuum pump, centrifugal levitation bearing air blower, oil-free screw air blower, water-lubricated oil-free air compressor and other high-tech products.
