Multi Stage Oil Free 270M3/Min Centrifugal Air Compressor

Ask Lasest Price
Brand Name :	GooDSeaA
Model Number :	GDC-150
Certification :	CE,CSA,BV,SGS,TUV
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	30 Sets Per Month
Delivery Time :	20 - 60 Working Days

Add to Cart

Product Details
Company Profile

Multi Stage Oil Free 270M3/Min Centrifugal Air Compressor

Multi stage Oil free Centrifugal Air Compressor Capacity 270m³/min GDC-150

Product Description

The GDC series products are customized through computer simulation of different environments, the impeller is precisely designed with advanced computer simulation technology, and the impeller is made of aviation grade materials through overall milling, the impeller has the characteristics of high strength, light weight, low vibration while running after high speed dynamic balance testing. Its excellent aerodynamic performance ensures that every blade of the impeller runs in high efficiency curve section even under full load operation. All components shall be subject to durability test to ensure high durability. The gear drive and air compression parts are completely separated to ensure 100% clean and oil-free compressed air.

Parameters

Model No.	GDC-150
Compressor Type	Centrifugal Type
Stage No.	1/2/3
Oil Free	Yes
Service Life	≥35years
Anti-surge Function	Yes
Power (KW)	980-1500
Pressure (bar)	2.0-16
Air Flow (m3/min)	180-270
Dimension (LWH )mm	4800x2200x2600
Weight (KG)	12000
Impeller Material	Titanium Alloy/Stainless Steel
Pinion Shaft Material	17CrNiMo6
Bull Gear Shaft Material	42CrMoA
Motor	WEG/Marathon
PLC Control System	Siemens
Circuit Breaker	ABB
Pressure Transducers	MEAS
Temperature Control Valves	AMOT
Vibration Sensors	Bently
Temperature Sensor	SEC
Motor Protection Grade	IP54 or customized
Motor Insulation grade	F Class or customized
Temperature Rise Leve	B Class or customized
Lubrication Method	Grease Lubrication

Structure features

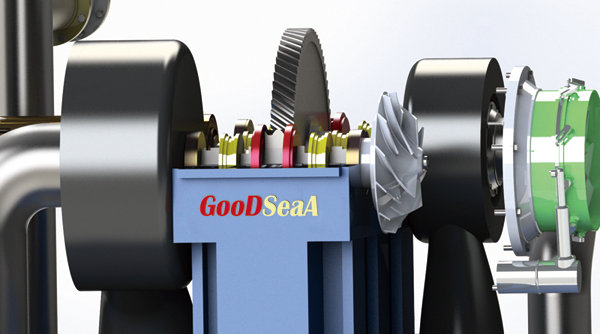

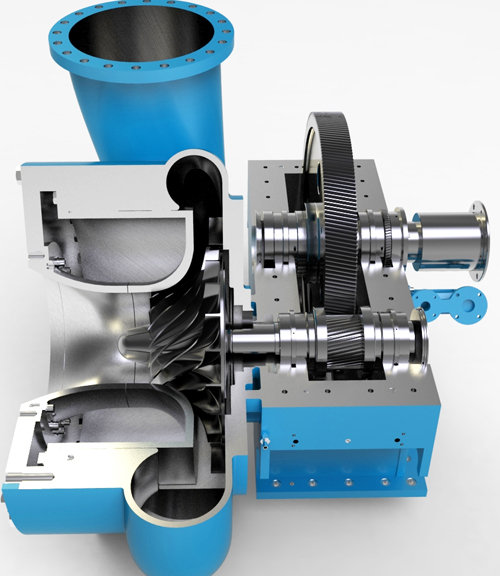

The lubrication system is separated from the compressed air to ensure that the compressed air is 100% clean and oil-free. The cooler and gearbox is also separated structurally, and the modular structure is easy and convenient for on-site installation and commissioning.

Product Name	Geared centrifugal air compressor
Casing Split Type	Horizontally split typed
Machine Structure	Motor driven, compressor, motor, lubricating oil system, coupling, intercooler, local control panel and connecting pipeline are all placed on a common base
Adjustment mode of inlet air volume	Guide vane(electric type)

Fuel tank

Fuel tank material	Carbon steel internal coating
Visible oil level gauge	5 minutes
Oil mist eliminator	Included
Temperature sensor	Included
Oil heater	Included
main oil pump	Included
Auxiliary oil pump	Included
Lubricating oil label	VG 32

Impeller

Impeller Type	3-D flow backward leaning vanes
Material	Aircraft-grade titanium alloy or high strength stainless steel

Volute

Split Type	Horizontal
Material	Ductile Cast Iron

Pinion

Bearing Type	5-petal tilting-pad type bearing
Shaft Type	With thrust ring
Shaft Material	17CrNiMo6
Grade	AGMA 13

Big gear wheel

Bearing Type	Radial direction thrust bearing
Shaft Material	42CrMoA
Big gear wheel	17CrNiMo6
Grade	AGMA 13

Gear Case

Split Type	Horizontal
Tooth Profile	Helical tooth
Material	High strength alloy material

Coupling

Coupling Type	Diaphragm type coupling with protective cover
Manufacturer	GooDSeaA

Sealing

Air sealing type	Labyrinth
Oil sealing type	Labyrinth
Sealing material	6063

Labyrinth type Stepped labyrinth type

Full flow oil filter

Filter Precision	10 um
Filter material	Synthetic fibre

Full flow oil cooler

Type	Calandria
Medium in tube	Water
Medium in Shell	Lubrication Oil
