Industrial Centrifugal Type Gas Turbo Compressor
Product Description
The centrifugal compressor is a kind of air compression system
which is composed of lubrication system, PLC control system,
compressor body, impeller, gear system, bearings, import guide
vane, interstage cooler etc. It has advantages compared with piston
compressors like compact structure, large air flow, stable and
reliable, low maintenance costs.
Parameters
Model No. | GDC-250 |
Compressor Type | Centrifugal Type |
Stage No. | 1/2/3 |
Oil Free | Yes |
Service Life | ≥35years |
Anti-surge Function | Yes |
Power
(KW) | 1500-1900 |
Pressure
(bar) | 2.0-18 |
Air Flow
(m3/min) | 270-360 |
Dimension
(L*W*H )mm | 5300x2600x3000 |
Weight
(KG) | 18000 |
Impeller Material | Titanium Alloy/Stainless Steel |
Pinion Shaft Material | 17CrNiMo6 |
Bull Gear Shaft Material | 42CrMoA |
Motor | WEG/Marathon |
PLC Control System | Siemens |
Circuit Breaker | ABB |
Pressure Transducers | MEAS |
Temperature Control Valves | AMOT |
Vibration Sensors | Bently |
Temperature Sensor | SEC |
Motor Protection Grade | IP54 or customized |
Motor Insulation grade | F Class or customized |
Temperature Rise Leve | B Class or customized |
Lubrication Method | Grease Lubrication |
Specification of components of centrifugal compressor |
Item | Description | Technical Specification |
1 | Inlet guide vane | Stainless steel materials |
2 | Impeller | Backward curved |
3 | Coupling with protective cover | Diaphragm type |
4 | Diffuser | Integral milling |
5 | Big gear wheel | High-strength alloy steel |
6 | Pinion | High-strength alloy steel |
7 | Horizontal split gearbox | High strength structural steel |
8 | Thrust bearing | Radial/Axial direction supporting capacity |
9 | Tilting-pad bearing | Radial direction |
10 | Air seal | Aluminum alloy labyrinth seal |
11 | Oil seal | Aluminum alloy labyrinth seal |
12 | Inter cooler | Water goes through the pipe |
13 | Oil filter element | 10 μm |
14 | Main oil pump | Screw type |
15 | Auxiliary oil pump | Screw type |
16 | Temperature Control Valves | Mechanical expansion type |
17 | PLC Control System | With 485 Interface |
18 | Touch screen | Colourful |
19 | Vibration Sensors | M10×1 |
20 | Pressure Transducers | P126 |
21 | Temperature Sensor | PT100 |
22 | Circuit breaker | LS50A |
23 | Air release valve | Pneumatic control |
24 | Back-pressure valve | Stainless steel valve plate |
25 | Inlet expansion joint | Stainless steel |
FAQ
Q: Are you a factory or trading company?
A: We are the professional air compressor/vacuum pump/ blower
manufacturer.
Q: Where does your company and factory locate in? How can I visit
you?
A: Our company locates in No.666, Xinbo Road, Maogang Town,
Songjiang District, Shanghai City 201606, China. It takes about one
hour from Shanghai Pudong airport or Hongqiao Airport to our
company.
Q: What does your company do regarding quality control?
A: Quality always enjoys the top priority. GoodSeaA attaches great
importance to quality control from beginning to the end.
Q: What is your after-sale service?
A: The guarantee period is 12 months from the date of the machine
installation or 15 months from the day of machine delivery. We will
take full responsibilities for the charges caused by the defects
during the guarantee period(This warranty does not cover human
damage or misuse of product).
Q: Do you offer consumables and wearing parts, too?
A: We supply all the necessary spare parts and wearing parts for
all equipments and on time.
Q: Which countries have you exported your products to?
A: Our group has been exporting our products to over sixty
countries, like Canada, the United States, Russia, Portugal,
Poland, Hungary, Turkey, South Africa, India, Singapore, the united
Arab Emirates, Egypt, Indonesia, Pakistan, Vietnam, Brazil, Peru,
Chile, Argentina etc.
Commissioning & Testing
1. High Speed Dynamic Balance Test
Gradually balancing from low speed to high speed.
The equilibrium speed is as close as possible to the critical
speed.
Balance at rated working speed to ensure balance accuracy.

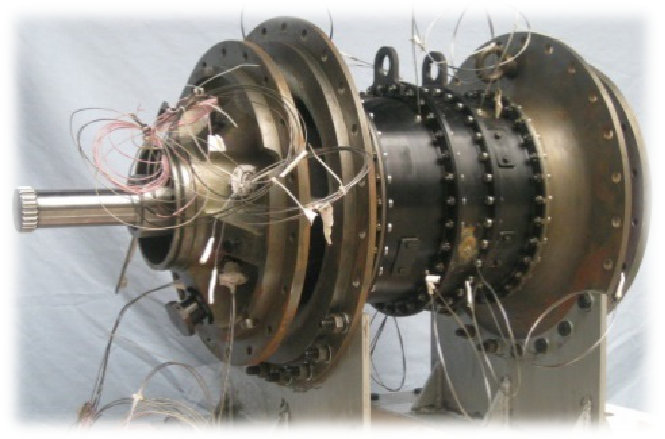

2. Rotor Test
The wheel rotation fracture test is carried out without damage in
the ground with 122% maximum rotational speed.
Working on the engine at 115% maximum allowable steady-state
operating speed for 5 minutes without cracking and the size is
within the allowable range.
On the engine, exceed the maximum allowable average steady-state
temperature of 42℃, work for 5 minutes without cracking, and the
size is within the allowable range.
3. Vibration Test
20% margin between critical speed and maximum working speed.
During the test of the components and the whole machine, there is
no adverse reaction to the vibration in the working speed rang
4. Performance, Characteristic Test
Performance tests under design conditions.
Characteristic tests under non-design conditions.
Process the test data to determine whether the performance of the
component is up to standard and draw a characteristic curve.
