Two Stage 110kw 12.5bar Rotary Screw Air Compressor

Product Categories

Goodseaa Aviation Technology(Shanghai) Co.,Ltd.

Contact Now

Name: Two Stage 110kw 125bar Rotary Screw Air Compressor
Brand: GooDSeaA
Price: 1 USD

Add to Cart

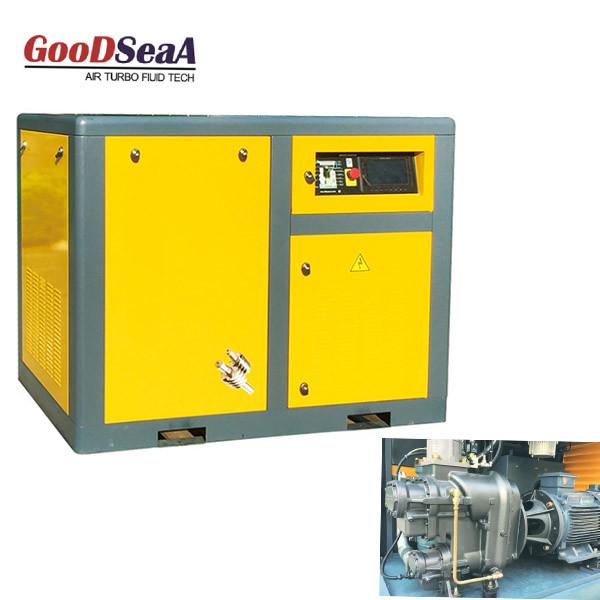

110kw 12.5bar Electric Motor Two Stage Rotary Screw Air Compressor

1. Specifications

110kw 12.5bar two-stage screw air compressor
Model	SE110AE-12.5	Note
Compressed stage	Two stage	Rotor 2+2
Free air delivery (m3/min)	17.2
Working pressure (bar)	12.5	1.25Mpa
Power (kw)	110	150hp
Noise level dB(A)	75
Cooling method	air cooling	water cooling is optional
Oil content (ppm)	1～3
Driver Motor	400V/3P/50Hz	can be customized
Protection degree	IP55, F
Driving mode	Direct Coupling
Control mode	Variable Speed Drive	optional
Control system	Intelligent PLC	Touch screen
Compressed air control method	Automatic(0-100%)
Discharge temperature	Ambient temp+8～10℃
Electrical components	ABB
Connection	DN 65
Dimension (mm)	2500x1800x1800
Weight (Kg)	3300

2. Advantages

Isothermal compression will not produce a lot of heat waste, so it has high energy utilization efficiency.
Internal Leakage Losses are Reduced
Reduced pressure difference across each stage facilitates reduction in leakage losses.
Two stage air compressor airend has higher volume ratio, so it’s compressed air production is higher.
Save power consumption and operation cost.

3. Applications in Food and Beverage

4.More Models

Model	Power (kw)	Pressure (bar)	Air Flow (m3/min)	Outlet Connection	Cooling air/water Air(kw) Water(m3/h)	Weight (kg)	Dimension *LWH mm*
SE110AE-7 SE110AE-10 SE110AE-12.5	110	7 10 12.5	24.50 20.00 17.20	DN 65	Air-3.0kw Water-10m3/h	3300	2500x1800x1800
SE132AE-7 SE132AE-10 SE132AE-12.5	132	7 10 12.5	27.60 23.50 19.60	DN 65	Air-3.0kw Water-12m3/h	3550	2500x1800x1800
SE160AE-7 SE160AE-10 SE160AE-12.5	160	7 10 12.5	33.50 29.00 23.20	DN 80	Air-3.5kw Water-15m3/h	4000	3000x1800x1800
SE185AE-7 SE185AE-10 SE185AE-12.5	185	7 10 12.5	39.50 32.50 27.80	DN 80	Air-3.5kw Water-15m3/h	4200	3000x1800x1800
SE220A(W)E-7 SE220A(W)E-10 SE220A(W)E-12.5	220	7 10 12.5	46.60 41.50 38.20	DN 100	Air-5.5kw Water-20m3/h	6500	3200x2200x2300
SE250A(W)E-7 SE250A(W)E-10 SE250A(W)E-12.5	250	7 10 12.5	52.00 45.50 40.20	DN 125	Air-7.5kw Water-25m3/h	7200	3200x2200x2300
SE280A(W)E-7 SE280A(W)E-10 SE280A(W)E-12.5	280	7 10 12.5	60.00 51.00 43.50	DN 125	Air-7.5kw Water-30m3/h	9000	3200x2200x2300
SE315A(W)E-7 SE315A(W)E-10 SE315A(W)E-12.5	315	7 10 12.5	65.00 59.00 53.00	DN 125	Air-7.5kw Water-30m3/h	9200	3200x2200x2300

5. GooDSeaA WorkShop
