Skid-mounted Type Energy Saving Screw Air Compressor System

Introduction
The containerized type screw air compressor is installed in a single cylinder, which can be leveled. In the special environment with large wind load, such as the seaside, special equipment foundation can be designed and the container can be fixed by anchor bolts to meet the design strength requirements of wind load.

• Ensure the safety of operators and equipment, and prevent the equipment from being exposed to the wind and rain.

• The outside container can protect the air compressor and other auxiliary equipments inside, that ensures the continuous and normal operation of the air compressor system, in the marine environment, the containerized type screw air compressor enhances the protection level of all the equipments in the container, in the extremely low and high temperature environment, through the design and installation of heater, heat insulation layer and air conditioner, the temperature in the container can be adjusted to ensure the normal operation of the air compressor. In desert environment, we can install sand filter at the air inlet of containerized screw air compressor to prevent dust and protect the equipment in the container, so as to prolong the service life of air compressor and after-treatment equipment, increase equipment operation efficiency and reduce maintenance workload.

• Convenient for equipment management, and the lock of the container door can avoid the loss of the equipment spare parts on the construction site.

• With the rising cost and price of industrial land, the selection of box type air compressor station to replace the traditional air compressor station to provide compressed air for production is also one of the ways for enterprises to reduce the initial investment cost.

System Flow

Air	Air→Air Filter →Air Intake Valve →Airend →Oil-Air Separator Tank→Minimum Pressure Valve →Cooler →Air Tank→Compressed Air Discharge
Oil	Oil→Oil-Air Separator Tank →Temperature Control Valve→Oil Cooler(Or By pass)→Oil Filter→Airend(Injection compression)→Oil-Air Separator Tank→Recycling

Control System
PLC English controller menu


◆ Four control modes: Automatic control, manual control, linkage control, remote control.
◆ Real running state: Power supply, exhaust pressure, exhaust temperature, standard time.
◆ Automatic malfunction alarm: overheating, lack of oil, over pressure separator block, oil filter block, air filter element block, lack of phase and phase reverse, motor overload, sensor failure, etc.
◆ Parameter preset/modification: Control mode, automatic start/stop load/unload pressure, temperature bound, load reply time; order choose of multiple compressor, maintenance time, calendar, and time.
◆ History record check: Load/unload running time, oil filter left time; separator left time, air filter left time, total running time, history failure record.

Brand of Main Components of Machine

Specification

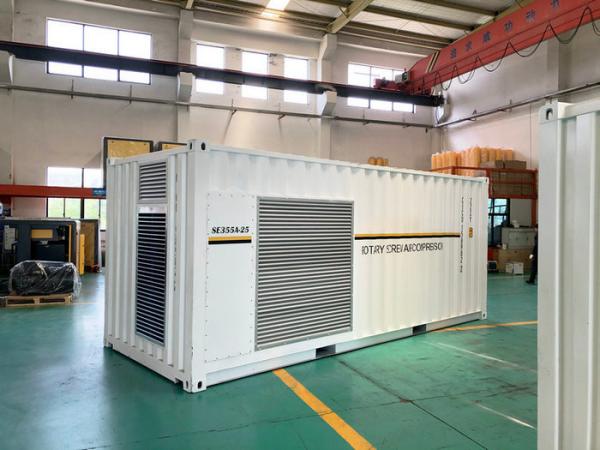

Containerized High Pressure Screw Air Compressor
Model	SE355AE-25
Shaft power	355	KW
Volume flow	2040	m³/h
Max working pressure	25	Bar
Power Supply	400/3/50(Could be customized)	V/P/ Hz
Cooling Type	Air/Water Cooling
Dimension	6058×2438×2591	L×W×H mm
Cabinet material	SPA-H
Box color	RAL-9003
Sound Pressure level	82	dB(A)
Weight	9800	Kg
Motor protection level	IP55
Start-up mode	Soft Start(Schneider)
Oil content	3	PPM
Air nozzle size	DN65
Maintenance period	1000	H
Exhaust temperature	≤ambient temperature+50	℃
Air tank	0.6M3
Antiseptic treatment (Cooler)	Anode Oxidation
Communication Protocol	MODBUS - FROFIBUS

Photos
