160KW 63-86 m³/min Air Blower for Activated Sludge Processing in
Waste Water Treatment Plant
Description

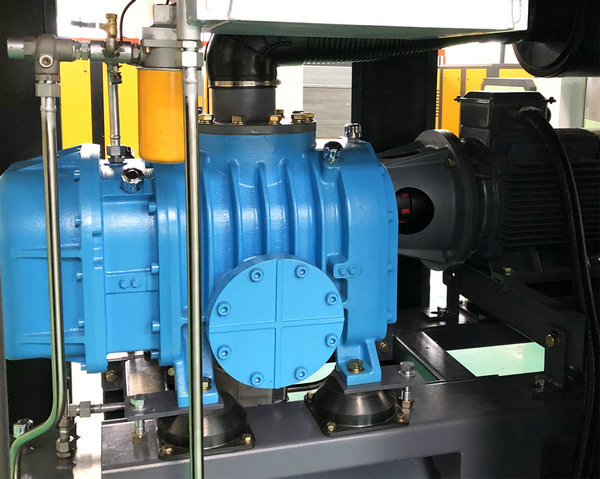

The screw air blower adopts dry type twin-screw oil-free compressor
airend, which is composed of high-efficiency motor, gear box, air
intake filter, ilencer, cooler and intelligent control system. It
can realize local and remote control. The integrated box structure
is convenient for installation and maintenance.
Our Technical Advantages
Relying on Famous Professional University in China and the resource advantages of senior compressor enterprises in
Mainland China, GoodSeaA has continuously increased its R&D investment and
cultivated a talent team. On the other hand, it has accelerated the
connection of universities,research institutes, large state-owned
enterprise technical experts and the wisdom&brain resources of
foreign related fields. It has also integrated the resources
between related laboratories of universities and research
institutes,high precision manufacturing capacity of military
supporting enterprises and other related cooperation
system,focusing on the segment market of “energy power
optimization", form a strong synergistic and comprehensive
capabilities in energy power field,including top-level technology
research and development, products, manufacturing, installation and
service.
Under the support of the turbo machinery technology of "famous
institute" and the levitation bearing technology of "famous
university", we guarantee that the technology of GooDSeaA can get
the most advanced ideas,technologies,software and hardware
facilities.Through continuous self-research and development,
GoodSeaA will leads Chinese civil turbo machinery industry to
improve it’s scientific and technological innovation capabilities.
Parameters of Positive-displacement Oil-free Screw Air Blower
MODEL | POWER
KW | PRESSURE
kPa | AIR FLOW
M3/min | OUTLET
CONNECTION | DIMENSION
L*W*Hmm | WEIGHT
Kg |
LG22-04 | 22 | 40 | 25 | DN150 | 2100*1100*1600 | 2000 |
LG22-06 | 60 | 16 |
LG22-08 | 80 | 15 |
LG30-06 | 30 | 60 | 25 | DN150 | 2100*1100*1600 | 2200 |
LG30-08 | 80 | 21 |
LG30-10 | 100 | 15 |
LG37-04 | 37 | 40 | 36 | DN150 | 2300*1300*1900 | 2300 |
LG37-08 | 80 | 25 |
LG37-10 | 100 | 21 |
LG37-12 | 120 | 16 |
LG37-15 | 150 | 15 |
LG45-06 | 45 | 60 | 36 | DN150 | 2300*1300*2000 | 2500 |
LG45-10 | 100 | 25 |
LG45-12 | 120 | 24 |
LG55-04 | 55 | 40 | 58 | DN200 | 3000*1700*2300 | 2900 |
LG55-06 | 60 | 43 |
LG55-15 | 150 | 24 | DN150 |
LG75-06 | 75 | 60 | 58 | DN200 | 3000*1700*2300 | 3300 |
LG75-08 | 80 | 49 |
LG75-10 | 100 | 42 |
LG75-12 | 120 | 34 |
LG90-04 | 90 | 40 | 89 | DN250 | 3000*1900*2400 | 4300 |
LG90-06 | 60 | 76 |
LG90-08 | 80 | 58 |
LG90-10 | 100 | 56 |
LG90-12 | 120 | 47 |
LG90-15 | 150 | 34 | DN200 | 3000*1700*2300 | 3600 |
LG110-04 | 110 | 40 | 98 | DN300 | 3000*1900*2400 | 4400 |
LG110-06 | 60 | 88 |
LG110-08 | 80 | 75 |
LG110-10 | 100 | 64 |
LG110-12 | 120 | 56 | DN250 |
LG110-15 | 150 | 48 | DN200 | 3000*1700*2300 | 3700 |
LG132-08 | 132 | 80 | 88 | DN300 | 3000*1900*2400 | 4500 |
LG132-10 | 100 | 75 |
LG132-12 | 120 | 64 |
LG132-15 | 150 | 56 | DN250 | 3000*1700*2300 | 3800 |
LG160-12 | 160 | 120 | 86 | DN300 | 3000*1900*2400 | 4600 |
LG160-15 | 150 | 63 |
LG180-12 | 180 | 120 | 90 | DN300 | 3000*1900*2400 | 4700 |
LG180-15 | 150 | 73 |
Remarks 1.Above Design Parameters are obtained based on below conditions: We assume the inlet volume flow is defined as the standard of 20℃ suction temperature and 1atm
2.We reserve the right to update the referred contents. Some
parameters can be changed according to the actual needs. Please refer to the pre-sale service |
Our Service Advantage
We provide machine on-site running guarantee service if necessary
- In early sales-term negotiations, we will send professional
technicians to your site for working condition evaluation and
provide solutions based on customer’s requirements if necessary.
Multiple business modes available
Direct Manufacturer
Looking for distributors to help market our products
OEM Service
EMC
Equipment Renting
......
Package & Delivery
Our usual way of packing is in bubble wrap. Meanwhile wooden case
packing is also available upon request, but additional fees should
be charged accordingly.
