160KW (220HP) 15-30% Engery-Saving Two Stage Industrial Rotary Twin
Screw Air Compressors
Constant Speed & Variable Speed Drives (VSD)
22-315KW 20-450 HP
(Energy efficiency and durability, energy savings up to 15-30% on
full-load)
1. Description & Features
Reliable, Ultra-Efficient Performance:Use the newest UV rotor of profile line with large diameter and
low speed. The two pairs of rotors are independent of the two compression units, the primary compression
rotor and the secondary compression rotor are combined in samecompressor housing. Respectively, through the gear drive, the two
inter-stage rotors are in the best line speed state of operation,
and thecompression efficiency is extremely high. This air compressor’s has
smaller host compression ratio, less leakage, and the volume
efficiency ishigher than the single-stage compression of 15%,energy-saving
effect is remarkable.
Precise Control: Personalized intelligent control system, Intuitive Intellects
controller gives you complete, fingertip access to your compressor, including easily adjustable operating parameters and time-saving
on-board diagnostics.
Less-Leakage Design: Selection of high durability, strong bearing capacity of SKF
heavy-duty bearing to ensure that the core components withexcellent reliability and durability. Using O-ring fittings
significantly reduces the potential leakage problems associated
with conventional threaded fittings.
Flexible Design Options: Air-cooled or water-cooled, Standard and VSD type, Voltage &
Frequency customized, Low Pressure (3～5 Bar)Softstarting option, mixed flow system temperature control valve.
2. Technical Parameter
| MODEL | Power (kW) | Pressure (bar) | AIR FLOW (m3/min) | OUTLET CONNCTIOEN | WEIGHT Kg | DIMENSION L×W×H mm |
SE22AE-7 SE22AE-10 SE22AE-12.5 | 22 | 7 10 12.5 | 4.20 3.80 3.20 | Rp 1 1/4 | 680 | 1470x860x1340 |
SE37E-7 SE37AE-10 SE37AE-12.5 | 37 | 7 10 12.5 | 7.10 6.60 5.80 | Rp 1 1/2 | 920 | 1610x1000x1470 |
SE55AE-7 SE55AE-10 SE55AE-12.5 | 55 | 7 10 12.5 | 11.60 11.20 9.10 | Rp 2 | 1620 | 2000x1300x1680 |
SE75AE-7 SE75AE-10 SE75AE-12.5 | 75 | 7 10 12.5 | 15.80 14.20 11.60 | Rp 2 | 1980 | 2000x1300x1680 |
SE90AE-7 SE90AE-10 SE90AE-12.5 | 90 | 7 10 12.5 | 20.50 17.60 14.20 | DN 65 | 2600 | 2466x1900x1918 |
SE110AE-7 SE110AE-10 SE110AE-12.5 | 110 | 7 10 12.5 | 24.50 20.00 17.20 | DN 80 | 2900 | 2466x1900x1918 |
SE132AE-7 SE132AE-10 SE132AE-12.5 | 132 | 7 10 12.5 | 27.60 23.50 19.60 | DN 80 | 3450 | 2766x1900x1918 |
SE160AE-7 SE160AE-10 SE160AE-12.5 | 160 | 7 10 12.5 | 33.50 29.00 23.20 | DN 80 | 3800 | 2766x1900x1918 |
SE185AE-7 SE185AE-10 SE185AE-12.5 | 185 | 7 10 12.5 | 39.50 32.50 27.80 | DN 100 | 3900 | 3800x2150x2100 |
SE220A(W)E-7 SE220A(W)E-10 SE220A(W)E-12.5 | 220 | 7 10 12.5 | 46.60 41.50 38.20 | DN 100 | 5800 | 3800x2150x2100 |
SE250A(W)E-7 SE250A(W)E-10 SE250A(W)E-12.5 | 250 | 7 10 12.5 | 52.00 45.50 40.20 | DN 125 | 6600 | 4200x2150x2100 |
SE280A(W)E-7 SE280A(W)E-10 SE280A(W)E-12.5 | 280 | 7 10 12.5 | 60.00 51.00 43.50 | DN 125 | 7200 | 4200x2150x2100 |
SE315A(W)E-7 SE315A(W)E-10 SE315A(W)E-12.5 | 315 | 7 10 12.5 | 66.00 60.00 53.00 | DN 125 | 7800 | 4200x2150x2100 |

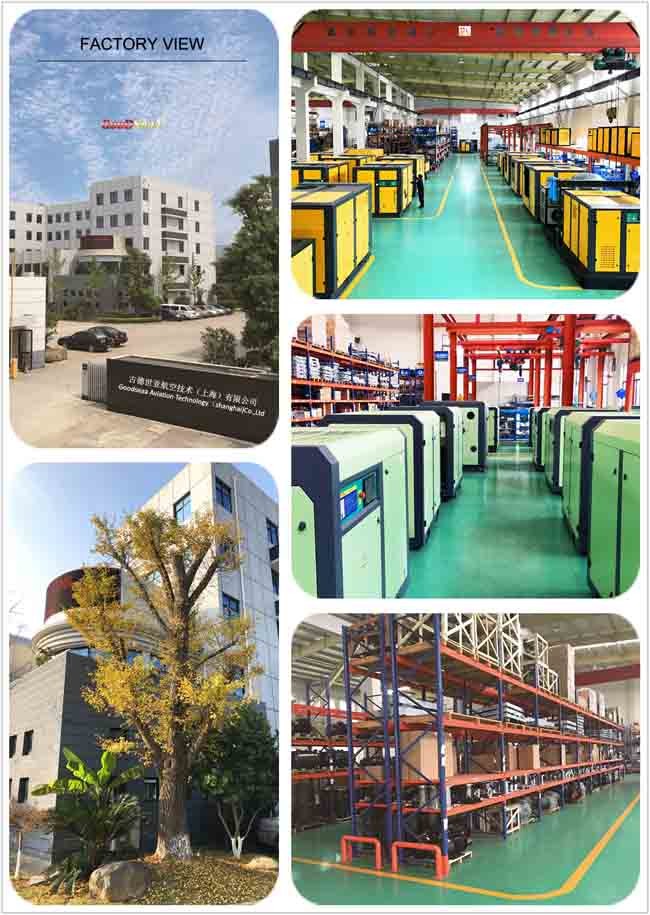

3. Our Factory
