    Zero Pollution Centrifugal Vacuum Blower for Melt-blown Non-woven Fabric Production Line

    Ask Lasest Price
    Brand Name : GooDSeaA
    Model Number : GDA110-06 / GDA110-08 / GDA110-10
    Certification : ISO,CE,ASME
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 Sets Per Month
    Delivery Time : ≥15 workdays or Negotiable
    • Product Details
    • Company Profile

    Zero Pollution Centrifugal Vacuum Blower for Melt-blown Non-woven Fabric Production Line

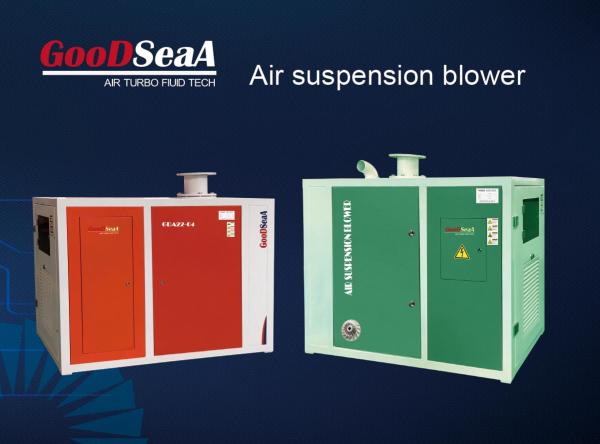

    65-105 m³/min Zero Pollution Air Bearing-levitation Centrifugal Blower


    Description


    The air suspension centrifugal blower is composed of high-speed motor, air bearing, impeller, frequency converter and other main components. The impeller shaft adopts air suspension bearing, no mechanical friction, and the rotating speed can be as high as 33000rpm. When the air bearing has not formed enough air pressure layer, the motor shaft is supported by elastic foil. When the rotor speed exceeds 2500 revolutions, the air film will be formed to suspend the shaft support.


    Advantage of Air bearing-levitation centrifugal blower

    • Multiple air suspension blowers are easy to operate in parallel. Only by lowering the SV value of the blower in use, the new blower can be incorporated into the operation. As the no-load speed of the blower reaches 150000rpm, the vent valve can be closed, and the machine will enter the loaded state. Thus there is enough pressure to go upwards through the check valve and reaches the main pipe, which ensures that surge will not happen.

    • The output air of Air suspension centrifugal blower is oil-free air, which is conducive to the growth of microorganisms in activated sludge system.

    • Air suspension centrifugal blower occupies a small area, does not need the foundation embedded parts, is installed quickly, and the operation noise is not more than 85 dB.

    GooDSeaA Service & Technical Support

    1. Turnkey engineering service

    2. System solution

    3. On-site guidance of installation, training, etc.

    4. Special maintenance service

    5. Guarantee time: 12 months for Whole equipment, 24 months for Core parts(impeller & volute)

    6. 24-hour response and on-site service after sale

    Additional Technical Service Provided by GooDSeaA


    Technical Service Provided for New Project:

    Customer Demand Learning - Equipment Selection -

    Solutions Evaluation - Engineering Design - Installation

    Guidance - Equipment Commissioning - After Sales Service

    Technical Service Provided for Modified Project:

    Customer Demand Learning - Site Investigation - Equipment

    Selection - Energy Efficiency Saving Accounting - Solutions

    put into execution - Installation&Commissioning - Warranty

    Service


    Our Vision

    GooDSeaA strives to be the R&D leader and products&solution provider in the field of civil turbo machinery, and committed to be the leader company in the field of aviation energy power technology and levitation bearing technology.


    FAQ

    Q: Are you a factory or trading company? ​

    A: We are the professional air compressor/vacuum pump/ blower manufacturer.


    Q: Where does your company and factory locate in? How can I visit you?​

    A: Our company locates in No.666, Xinbo Road, Maogang Town, Songjiang District, Shanghai City 201606, China. It takes about one hour from Shanghai Pudong airport or Hongqiao Airport to our company.


    Q: What does your company do regarding quality control?

    A: Quality always enjoys the top priority. GoodSeaA attaches great importance to quality control from beginning to the end.


    Q: What is your after-sale service?

    A: The guarantee period is 12 months from the date of the machine installation or 15 months from the day of machine delivery. We will take full responsibilities for the charges caused by the defects during the guarantee period(This warranty does not cover human damage or misuse of product).


    Q: Do you offer consumables and wearing parts, too?​

    A: We supply all the necessary spare parts and wearing parts for all equipments and on time.


    Q: Which countries have you exported your products to?

    A: Our group has been exporting our products to over sixty countries, like Canada, the United States, Russia, Portugal, Poland, Hungary, Turkey, South Africa, India, Singapore, the united Arab Emirates, Egypt, Indonesia, Pakistan, Vietnam, Brazil, Peru, Chile, Argentina etc.


    Parameters of Air bearing-levitation centrifugal blower

    MODEL

    POWER
    KW

    PRESSURE
    kW

    AIR FLOW
    m3/min

    OUTLET
    CONNECTION

    DIMENSION
    LxWxHmm

    WEIGHT
    Kg

    GDA22-06
    22
    60
    20
    DN150
    1580x700x1300
    525
    GDA22-08
    80
    17
    GDA37-06
    37
    60
    35
    DN150
    1580x700x1300
    535
    GDA37-08
    80
    28
    GDA55-04
    55
    40
    74
    DN200
    1760x855x1550
    750
    GDA55-06
    60
    50
    GDA55-08
    80
    41
    GDA55-10
    100
    33
    GDA75-04
    75
    40
    93
    DN300
    1760x855x1550
    800
    GDA75-06
    60
    65
    DN200
    GDA75-08
    80
    53
    DN200
    GDA75-09
    90
    45
    DN200
    GDA95-06
    95
    60
    81
    DN250
    1960x1020x1700
    1020
    GDA95-08
    80
    67
    GDA110-06
    110
    60
    105
    DN300
    2000x1020x1710
    1050
    GDA110-08
    80
    85
    DN250
    GDA110-10
    100
    65
    GDA150-06
    150
    60
    136
    DN300
    2000x1020x1710
    1090
    GDA150-08
    80
    108
    GDA150-10
    100
    86
    DN250
    GDA200-06
    200
    60
    158
    DN300
    2000x1020x1710
    1130
    GDA200-08
    80
    132
    GDA200-10
    100
    103
    GDA225-06
    225
    60
    208
    DN400
    2360x1300x2050
    1590
    GDA225-08
    80
    163
    GDA225-10
    100
    132
    GDA300-06
    300
    60
    268
    DN500
    3020x1620x2050
    2020
    GDA300-08
    80
    213
    DN400
    GDA300-10
    100
    170
    GDA375-06
    375
    60
    318
    DN500
    3220x1760x2090
    2050
    GDA375-08
    80
    258
    GDA375-10
    100
    208
    DN400
    GDA450-06
    450
    60
    418
    DN600
    3520x1960x2000
    2550
    GDA450-08
    80
    320
    GDA450-10
    100
    258
    DN500
    Remarks
    1.Above Design Parameters are obtained based on below conditions:
    We assume the inlet volume flow is defined as the standard of 20℃ suction temperature and 1atm
    2.We reserve the right to update the referred contents. Some parameters can be changed according to the actual needs. Please refer to the pre-sale service.
