7.5kw 10hp Belt Drive Screw Air Compressor with ISO , CE , ASME
Certificates
1. Belt Drive VS Direct Drive
In general,rotary air compressors are available in a belt drive or
direct drive version. Each option works effectively and can be
beneficial to your needs, but they are very different. A belt drive
compressor consists of a belt that is connected to the motor of the
compressor pump. When the motor runs, the belt turns, powering the
pump to your air compressor. With a direct drive air compressor,
the crankshaft is connected directly to the compressor's motor.
Many experts believe a belt drive compressor is better because a
properly lubricated belt system will run in a more smooth manner,
which can be both efficient and quiet. On the other hand, belts can
wear down, causing you to repair or replace the belts to ensure the
compressor is able to function again.
Since there is no belt system, a direct drive compressor will be
easier to run and maintain. Oil or any type of lubrication is not
required, reducing operating and maintenance costs/time even
further. Without a belt system, a direct drive compressor can also
produce more power, which is beneficial for effective and efficient
function.
2. How to Choose the Air Compressor ?
Adjustability is important for many people. If you need to adjust
the speed and power of your compressor, choosing a belt drive
compressor may be a better option. However, if reliability, ease of
maintenance, cost-effectiveness, and power is more important, a
direct drive compressor without the belt system can be a good
investment for your industrial or manufacturing needs.
3. Characteristics of GoodSeaA Belt Drive Screw Air Compressor
1) Specific screw compressor motor
◆ IP55, F Class
◆ SKF over-loading bearing
◆ Service Factor: SF=1.2
◆ Low noise, long use life
◆ Voltage and Frequency can be customized
2) High-efficiency Filter System
◆ High-efficiency air filter, filter the air of dust and
impurities, filtration come to 98.5%
◆ Branded oil filter, filter the air of oil, guarantee the long
time use life of airend
◆Oil-Air Separator element, high-efficient separation, oil contact
less than 3ppm
◆ Regular maintenance notice and alarm by PLC
3 )Control System
◆ ABB brand electrical components, including breakers, AC
contactors, reliable, easy to replace
◆ MICROCHIP with Standard 485 interface, it can achieve remote
monitoring according via MODBUS communication protocol
◆Collection the signals of compressor electrical , exhaust,
temperature , pressure to monitor the operational status , but also
help for quick troubleshooting
4) High-efficiency Cooler
◆ Integrated design of air cooler and oil cooler, compacted
structure, small size with lower weight
◆ high- efficient heat transfer, guarantee the best cooling effect
◆ Water cooling is available
4. More Technical Parameters
MODEL | POWER | PRESSURE | AIR FLOW | NOISE LEVEL dB(A) | OUTLET CONNECTION | WEIGHT (KG) | DIMENSION L×W×H (mm) |
KW | HP | BAR | PSI | M3/MIN | CFM |
SEC4A-7 SEC4A-8 SEC4A-10 SEC4A-13 | 4 | 5.5 | 7 8 10 13 | 101.5 116 145 188.5 | 0.5 0.5 0.4 0.25 | 17.6 17.6 14.1 8.83 | 60 | RP 3/4 | 150 | 800x620x810 |
SEC5A-7 SEC5A-8 SEC5A-10 SEC5A-13 | 5.5 | 7.5 | 7 8 10 13 | 101.5 116 145 188.5 | 0.8 0.8 0.63 0.5 | 28.2 28.2 22.2 17.6 | 60 | RP 3/4 | 170 | 800x620x810 |
SEC7A-7 SEC7A-8 SEC7A-10 SEC7A-13 | 7.5 | 10 | 7 8 10 13 | 101.5 116 145 188.5 | 1.15 1.15 1.0 0.79 | 40.6 40.6 35.3 27.8 | 62 | RP 3/4 | 190 | 800x620x810 |
SEC11A-7 SEC11A-8 SEC11A-10 SEC11A-13 | 11 | 15 | 7 8 10 13 | 101.5 116 145 188.5 | 1.80 1.80 1.50 1.20 | 635. 63.5 52.9 42.3 | 66 | RP 3/4 | 230 | 800x620x810 |
SE15A-7 SE15A-8 SE15A-10 SE15A-13 | 15 | 20 | 7 8 10 13 | 101.5 116 145 188.5 | 2.3 2.3 2.05 1.65 | 81.2 81.2 72.4 58.3 | 66 | RP 3/4 | 420 | 775×1050×1050 |
SE18A-7 SE18A-8 SE18A-10 SE18A-13 | 18 | 25 | 7 8 10 13 | 101.5 116 145 188.5 | 3.0 3.0 2.6 2.2 | 106 106 91.8 77.7 | 66 | RP 3/4 | 480 | 775×1050×1050 |
SE22A-7 SE22A-8 SE22A-10 SE22A-13 | 22 | 30 | 7 8 10 13 | 101.5 116 145 188.5 | 3.8 3.6 3.2 2.8 | 134.2 127.1 113 98.9 | 68 | Rp1 1/4 | 620 | 860×1115×1340 |
SE30A-7 SE30A-8 SE30A-10 SE30A-13 | 30 | 40 | 7 8 10 13 | 101.5 116 145 188.5 | 5.2 5.0 4.5 3.7 | 183.6 176.6 158.9 130.7 | 70 | Rp1 1/4 | 680 | 860×1115×1340 |
SE37A-7 SE37A-8 SE37A-10 SE37A-13 | 37 | 50 | 7 8 10 13 | 101.5 116 145 188.5 | 6.8 6.6 5.8 4.8 | 240.1 233.1 204.8 169.5 | 70 | Rp1 1/2 | 850 | 1000×1300×1470 |
SE45A-7 SE45A-8 SE45A-10 SE45A-13 | 45 | 60 | 7 8 10 13 | 101.5 116 145 188.5 | 8.0 7.6 7.0 5.8 | 282.5 268.4 247.2 204.1 | 71 | Rp1 1/2 | 950 | 1000×1300×1470 |
SE55A-7 SE55A-8 SE55A-10 SE55A-13 | 50 | 75 | 7 8 10 13 | 101.5 116 145 188.5 | 10.8 10 9 7.8 | 381.4 353.1 317.8 275.4 | 74 | Rp 2 | 1450 | 1150×1550×1660 |

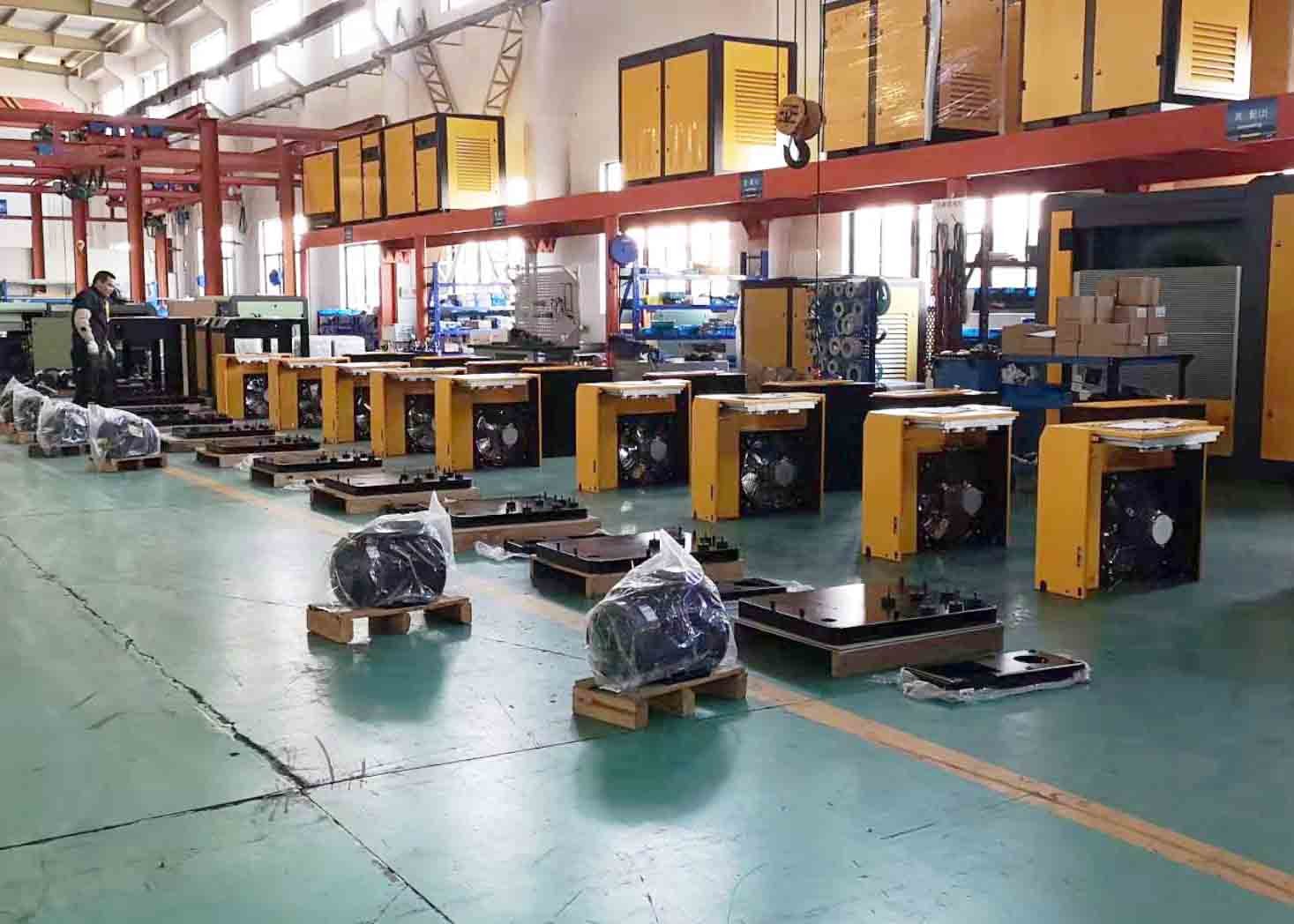

5. GoodSeaA Workshop
