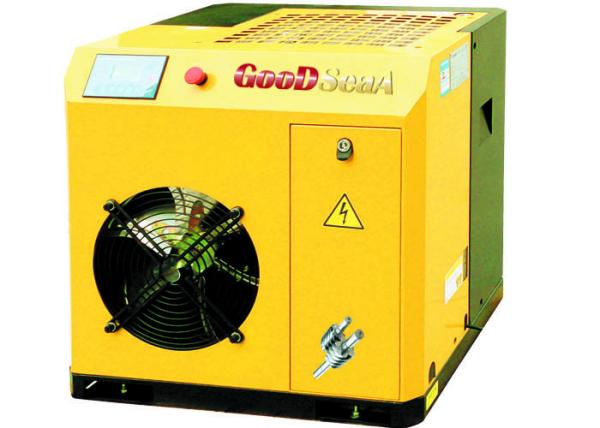

4kw 5.5hp Small Power Screw Air Compressor with Factry Direct
Supply
1. Features of GoodSeaA Belt Driven Screw Air Compressor
1) Airend
Air end is equipped with lasted rotors with bigger diameter and low
rotate speed, high –quality SKF over loading bearing and three
special oil seals guarantee the high efficiency, reliability and
durability.
2)PLC intelligent control system
Human-based English user interface: remote control and several
compressors interconnected; running state; automatic protective
alarm.
3)High-efficiency Filter System
◆ High-efficiency air filter, filter the air of dust and
impurities, filtration come to 98.5%
◆ Branded oil filter, filter the air of oil, guarantee the long
time use life of airend
◆Oil-Air Separator element, high-efficient separation, oil contact
less than 3ppm
◆ Regular maintenance notice and alarm by PLC
4)Control System
◆ ABB brand electrical components, including breakers, AC
contactors, reliable, easy to replace
◆ MICROCHIP with Standard 485 interface, it can achieve remote
monitoring according via MODBUS communication protocol
◆Collection the signals of compressor electrical , exhaust,
temperature , pressure to monitor the operational status , but also
help for quick troubleshooting
2. Advantages of GoodSeaA Belt Driven Screw Air Compressor
1).Long life-time
The compressor airend is operated with a large rotor at a low
speed, so it has a long life-time. Adopts asymmetric screws,
optimize the design of female and male rotors’ end face, as well as
optimize the diameter and length of the screw rotors, so that it
has reduces hydrodynamic losses and noise reduction, the airend's
volume utilization is more efficiency.
2).The overall design of the air compressor is compact, reasonable
and stable.
3).Use belt to drive, noise is low.
4).Easy to operate and maintenance.
5).Low empty-load energy consumption
3. More Technical Parameters
| MODEL | POWER | PRESSURE | AIR FLOW | NOISE LEVEL dB(A) | OUTLET CONNECTION | WEIGHT (KG) | DIMENSION L×W×H (mm) |
| KW | HP | BAR | PSI | M3/MIN | CFM |
SEC4A-7 SEC4A-8 SEC4A-10 SEC4A-13 | 4 | 5.5 | 7 8 10 13 | 101.5 116 145 188.5 | 0.5 0.5 0.4 0.25 | 17.6 17.6 14.1 8.83 | 60 | RP 3/4 | 150 | 800x620x810 |
SEC5A-7 SEC5A-8 SEC5A-10 SEC5A-13 | 5.5 | 7.5 | 7 8 10 13 | 101.5 116 145 188.5 | 0.8 0.8 0.63 0.5 | 28.2 28.2 22.2 17.6 | 60 | RP 3/4 | 170 | 800x620x810 |
SEC7A-7 SEC7A-8 SEC7A-10 SEC7A-13 | 7.5 | 10 | 7 8 10 13 | 101.5 116 145 188.5 | 1.15 1.15 1.0 0.79 | 40.6 40.6 35.3 27.8 | 62 | RP 3/4 | 190 | 800x620x810 |
SEC11A-7 SEC11A-8 SEC11A-10 SEC11A-13 | 11 | 15 | 7 8 10 13 | 101.5 116 145 188.5 | 1.80 1.80 1.50 1.20 | 635. 63.5 52.9 42.3 | 66 | RP 3/4 | 230 | 800x620x810 |
SE15A-7 SE15A-8 SE15A-10 SE15A-13 | 15 | 20 | 7 8 10 13 | 101.5 116 145 188.5 | 2.3 2.3 2.05 1.65 | 81.2 81.2 72.4 58.3 | 66 | RP 3/4 | 420 | 775×1050×1050 |
SE18A-7 SE18A-8 SE18A-10 SE18A-13 | 18 | 25 | 7 8 10 13 | 101.5 116 145 188.5 | 3.0 3.0 2.6 2.2 | 106 106 91.8 77.7 | 66 | RP 3/4 | 480 | 775×1050×1050 |
SE22A-7 SE22A-8 SE22A-10 SE22A-13 | 22 | 30 | 7 8 10 13 | 101.5 116 145 188.5 | 3.8 3.6 3.2 2.8 | 134.2 127.1 113 98.9 | 68 | Rp1 1/4 | 620 | 860×1115×1340 |
SE30A-7 SE30A-8 SE30A-10 SE30A-13 | 30 | 40 | 7 8 10 13 | 101.5 116 145 188.5 | 5.2 5.0 4.5 3.7 | 183.6 176.6 158.9 130.7 | 70 | Rp1 1/4 | 680 | 860×1115×1340 |
SE37A-7 SE37A-8 SE37A-10 SE37A-13 | 37 | 50 | 7 8 10 13 | 101.5 116 145 188.5 | 6.8 6.6 5.8 4.8 | 240.1 233.1 204.8 169.5 | 70 | Rp1 1/2 | 850 | 1000×1300×1470 |
SE45A-7 SE45A-8 SE45A-10 SE45A-13 | 45 | 60 | 7 8 10 13 | 101.5 116 145 188.5 | 8.0 7.6 7.0 5.8 | 282.5 268.4 247.2 204.1 | 71 | Rp1 1/2 | 950 | 1000×1300×1470 |
SE55A-7 SE55A-8 SE55A-10 SE55A-13 | 50 | 75 | 7 8 10 13 | 101.5 116 145 188.5 | 10.8 10 9 7.8 | 381.4 353.1 317.8 275.4 | 74 | Rp 2 | 1450 | 1150×1550×1660 |
4. Products Inner Structure
