Fertilizer Industry Turbo Air Compressor Machine 180-270 m³/ min 3
Years Warranty
Introduction
Centrifugal compressors are widely used in large-scale chemical
industry, oil refining, metallurgy, oxygen production,
pharmaceutical and other fields because of their outstanding
advantages. It plays an important role in the relevant production
equipments, and is known as the "heart" of the production line.
Product Advantage
| Energy-Saving | Designed with the most advanced aerodynamic theory and tools,
personalized design for the user's application requirements,to keep the equipment
working in an energy- efficient area to achieve energy savings, which can save 30-60%
energy |
| Stable and Reliable | The use of aviation standards processing, manufacturing,
commissioning, inspection, far higher than the general mechanical standards. The impeller uses
aviation grade high strength alloy material, can be used 300,000 hours (about 35
years) without maintenance, the drive system using high-efficiency energy-saving
motor, stable and reliable quality, suitable for long-term stable operation in a
variety of industrial environments. |
| Save on investment costs, cost- effective | The core technologies and processes such as design, manufacturing
and assembly are all localized, and relying on the existing research platforms
of Beihang University and aviation military enterprises, the design and manufacturing
costs are greatly reduced. Compared with foreign advanced similar products, the input
cost is reduced by at least half under the same installed power, and the equipment
efficiency is not lower than or even higher than foreign advanced products. |
Features
1. 100% Oil-free
The GDC series oil-free centrifugal air compressor is designed to
ensure the continuous and stable operation under a wide range of
gas flow working condition. Its high working efficiency can fully
meet the gas supply demand of various process flow and provide
absolutely oil-free high-flow compression for all industries.
The impeller which is precisely designed with advanced computer
simulation technology is made of aviation grade materials by
overall milling, and the impeller is with the dynamic balance test,
has the characteristics of high strength, light weight, low
vibration while running. Its excellent aerodynamic performance
ensures that every blade of the impeller runs in high efficiency
curve section even under full load operation. All components shall
be subject to durability test to ensure high durability. The gear
drive and air compression parts are completely separated to ensure
100% clean and oil-free compressed air.
2. Antisurge control system
The transmission device of GDC series oil-free centrifugal is
designed stably and reliably. The precisely designed impeller and
diffuser ensure that the compressor can work efficiently in a wide
range of gas volume. At the same time, the three-dimensional flow
backward curved impeller which design is based on a large number of
data analysis and modern aerodynamics with aviation material
ensures the best efficiency of the machine.
Each rotor is composed of high quality impeller, thrust ring and
impeller shaft. The small gear thrust ring transmits the axial
thrust directly to the big gear through the thrust ring, which
greatly reduces the meshing force of the gear helical teeth,
improves the gear life, and reduces the energy efficiency loss.
3. 100% oil-free clean compressed air
Perfect separation structure between the lubricating oil part and
the air compression part
4. Wide range of applications
Compressors from single stage to multiple stages (6 stage) are all
available, we provide customized products.
5. Durability
Stable quality assurance system to insure the compressor
performance
6. The high quality components
High efficiency impeller
Imported flow regulation
Various sealing systems
Horizontally divided gearbox
Various material shells
Lubricating oil system
Constant control mode
Wide working range
Our Technical Advantages
Relying on Famous Professional University in China and the resource advantages of senior compressor enterprises in
Mainland China, GoodSeaA has continuously increased its R&D investment and
cultivated a talent team. On the other hand, it has accelerated the
connection of universities,research institutes, large state-owned
enterprise technical experts and the wisdom&brain resources of
foreign related fields. It has also integrated the resources
between related laboratories of universities and research
institutes,high precision manufacturing capacity of military
supporting enterprises and other related cooperation
system,focusing on the segment market of “energy power
optimization", form a strong synergistic and comprehensive
capabilities in energy power field,including top-level technology
research and development, products, manufacturing, installation and
service.
Under the support of the turbo machinery technology of "famous
institute" and the levitation bearing technology of "famous
university", we guarantee that the technology of GooDSeaA can get
the most advanced ideas,technologies,software and hardware
facilities.Through continuous self-research and development,
GoodSeaA will leads Chinese civil turbo machinery industry to
improve it’s scientific and technological innovation capabilities.
Multiple business modes available
Direct Manufacturer
Looking for distributors to help market our products
OEM Service
EMC
Equipment Renting
......
Specifications
MODEL | POWER
KW | PERSSURE
bar | AIR FLOW
m3/min | DIMENSION
L*W*H mm | WEIGHT
KG |
GDC-30 | 130-270 | 2.5-10 | 25-50 | 2750x1460x2000 | 4200 |
GDC-60 | 260-450 | 2.5-10 | 48-85 | 2850x1560x2000 | 4500 |
GDC-90 | 430-800 | 2.5-10 | 78-140 | 2950x1660x2100 | 4900 |
GDC-120 | 710-1050 | 2.5-10 | 132-200 | 3000x1660x2120 | 8100 |
GDC-150 | 980-1500 | 2.5-10 | 180-270 | 4800x2200x2600 | 12000 |
GDC-250 | 1500-1900 | 2.5-10 | 270-360 | 5300x2600x3000 | 18000 |
GDC-400 | 1960-2900 | 2.5-10 | 360-530 | 5800x3000x3200 | 28000 |
GDC-650 | 2600-4900 | 2.5-10 | 470-890 | 6200x3500x3800 | 48000 |
GDC-1200 | 4500-9100 | 2.5-10 | 830-1500 | 7200x5000x4800 | 53000 |

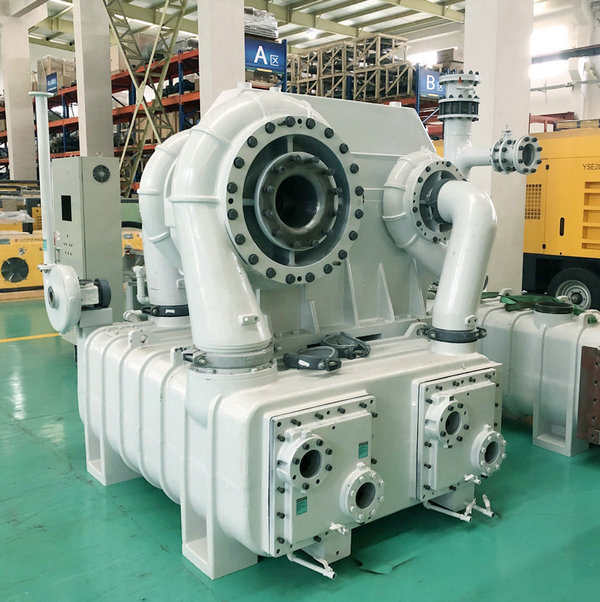

Product Photos
