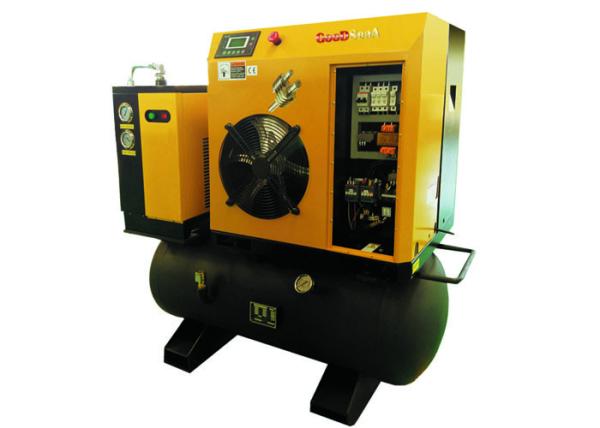

4KW-5.5HP Tank, Dryer and Filter Integrated Combined Rotary AC
Screw Air Compressor
1. Introduction of Integrated Combined Rotary AC Screw Air Compressor
To save user’s purchase and installation costs, and based on the
high reliability, high efficiency, and easy operation design
principle, GooDSeaA has launched the tank mounted screw compressors
with dryer and 3-class air filters. This type integrated package
screw air compressor not only looks more beautiful, but also easy
to use and movement. Once launched, it is welcomed and accepted by
many users.
Unique Style Function: All the components and prats are equipped in
one cabinet, meanwhile the silencer and shockproof facilities are
fitted,it is not necessary to make foundation, the compressor can
be available for use just connects the pipeline and power souce.
2. Advantages of Integrated Combined Rotary AC Screw Air Compressor
♦ Compressor, tank, dryer and fitler integrated together, supply
high quality compressed air.
♦ Space saving, compact compressed air system.
♦ Complete system, no pipelines installation costs.
♦ Easy to use, flexible.
♦ High efficiency.
♦ It can be modularly installed in the production line to improve
the integrity of the production system.
♦ Beautiful appearance, reliable performance and economic
superiority.
3.Details of this Integrated Combined Rotary AC Screw Air
Compressor
| MODEL | POWER | PRESSURE | AIR FLOW | Tank | Air Dryer | Air filters |
| kw | hp | bar | psi | m3/min | cfm | | | |
SEC4A-7/T SEC4A-8/T SEC4A-10/T SEC4A-13/T | 4 | 5.5 | 7 8 10 13 | 101.5 116 145 188.5 | 0.5 0.5 0.4 0.25 | 17.7 17.7 14.1 8.8 | 250Litre | DA-08 (0.8m3/min) | SF18-P/A/F (1.8m3/min) |
3. Specifications of Other Integrated Combined Rotary Screw Air Compressor
| MODEL | POWER | PRESSURE | AIR FLOW | NOISE LEVEL dB(A) | OUTLET CONNECTION | WEIGHT (KG) | DIMENSION L×W×H (mm) |
| KW | HP | BAR | PSI | M3/MIN | CFM |
SEC4A-7/T SEC4A-8/T SEC4A-10/T SEC4A-13/T | 4 | 5.5 | 7 8 10 13 | 101.5 116 145 188.5 | 0.5 0.5 0.4 0.25 | 17.7 17.7 14.1 8.8 | 60 | RP 3/4 | 250 | 1426×620×1420 |
SEC5A-7/T SEC5A-8/T SEC5A-10/T SEC5A-13/T | 5.5 | 7.5 | 7 8 10 13 | 101.5 116 145 188.5 | 0.8 0.8 0.63 0.5 | 28.3 28.3 22.2 17.7 | 60 | RP 3/4 | 270 | 1426×620×1420 |
SEC7A-7/T SEC7A-8/T SEC7A-10/T SEC7A-13/T | 7.5 | 10 | 7 8 10 13 | 101.5 116 145 188.5 | 1.15 1.15 1.0 0.79 | 40.6 40.6 35.3 27.9 | 62 | RP 3/4 | 290 | 1426×620×1420 |
SEC11A-7/T SEC11A-8/T SEC11A-10/T SEC11A-13/T | 11 | 15 | 7 8 10 13 | 101.5 116 145 188.5 | 1.8 1.8 1.5 1.2 | 63.6 63.6 53.0 42.4 | 66 | RP 3/4 | 330 | 1426×620×1420 |
