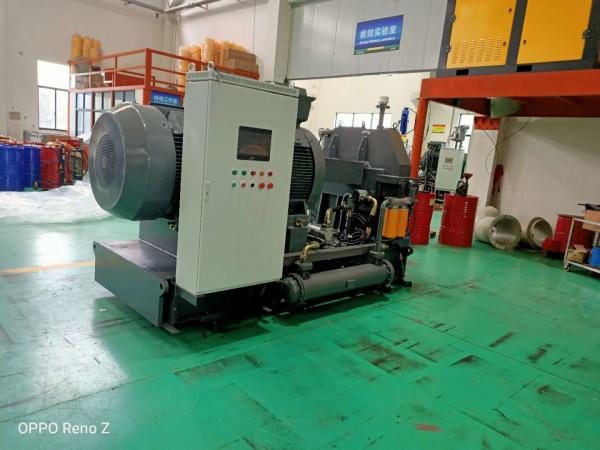

Multi-stage Turbine Air Gas Compressor Capacity 25-50 m³/min GDC-30
Product Description
Goodseaa uses the aero-engine 3D blade designing software to have
the impeller designed to work together with high speed forging
alloy steel precision helical gear to achieve an extra high dynamic
energy efficiency.
Aviation standard processing, manufacturing, commissioning and
inspection, far higher than the general mechanical standards. The
impeller is made of aviation grade high strength alloy, which can
be used for 300000 hours without maintenance.
Parameters
Model No. | GDC-30 |
Compressor Type | Centrifugal Type |
Stage No. | 1/2/3 |
Oil Free | Yes |
Service Life | ≥35years |
Anti-surge Function | Yes |
Power
(KW) | 130-270 |
Pressure
(bar) | 2.5-10 |
Air Flow
(m3/min) | 25-50 |
Dimension
(L*W*H )mm | 2750x1460x2000 |
Weight
(KG) | 4200 |
Impeller Material | Titanium Alloy/Stainless Steel |
Pinion Shaft Material | 17CrNiMo6 |
Bull Gear Shaft Material | 42CrMoA |
Motor | WEG/Marathon |
PLC Control System | Siemens |
Circuit Breaker | ABB |
Pressure Transducers | MEAS |
Temperature Control Valves | AMOT |
Vibration Sensors | Bently |
Temperature Sensor | SEC |
Motor Protection Grade | IP54 or customized |
Motor Insulation grade | F Class or customized |
Temperature Rise Leve | B Class or customized |
Lubrication Method | Grease Lubrication |
GooDSeaA Compressor Control System
The control system is designed to perform blower protection and
regulation with a PLC controller and sensors:
Show the operating data of the compressor
Inspect the compressor’s running and alarm or shutdown
Re-set and adjust the setting point, maintain the discharge
pressure and surge protection
Modulate the air flow via the Inlet Guide Vane and bypass valve
Auto control the lube oil system
This control system will inspect and acknowledge if the blower is
close to the surge line based on the difference between the actual
discharge pressure and setting point . The surge protection
function is offered.
Inspect the blower parts which need to be updated or maintained.
Manual local control and remote control (central control room) both
available
With RS485 communication interface, it can not only monitor the
blower operation, but also upload the relevant monitoring data of
the system to the user monitoring center through the LAN through
the standard network interface, so as to realize the real-time
information feedback
Upload the data monitored by the system through LAN to realize
information timely monitoring 31 item information can be displayed
on the LCD of the machine unit, the unit has 13 alarm control items
and 12 shutdown control items.
Advantages of Centrifugal Compressors
Centrifugal compressor can obtain such a wide range of
applications, mainly because it has below advantages compared with
piston compressors:
1. The centrifugal compressor has a large gas volume, simple and
compact structure, light weight, small unit size and small floor
space.
2. the operation is balanced, the operation is reliable, the
operation rate is high, and the friction parts are few, because the
spare parts need less usage, the maintenance cost and the personnel
are small.
3. In the chemical process, the centrifugal compressor can achieve
an absolutely oil-free compression process for chemical media.
4. The centrifugal compressor is a kind of rotary motion machine,
which is suitable for direct dragging of industrial steam turbines
or gas turbines.For general large-scale chemical plants, it is
often used as a by-product steam-driven industrial steam turbine to
provide power for comprehensive utilization of thermal energy.
Additional Technical Service Provided
Technical Service Provided for New Project: |
Customer Demand Learning - Equipment Selection - Solutions Evaluation - Engineering Design - Installation Guidance - Equipment Commissioning - After Sales Service
|
Technical Service Provided for Modified Project: |
Customer Demand Learning - Site Investigation - Equipment Selection - Energy Efficiency Saving Accounting - Solutions put into execution - Installation&Commissioning - Warranty Service
|
Multiple business modes available
Direct Manufacturer
Looking for distributors to help market our products
OEM Service
EMC
Equipment Renting
......
FAQ
Q: Are you a factory or trading company?
A: We are the professional air compressor/vacuum pump/ blower
manufacturer.
Q: Where does your company and factory locate in? How can I visit
you?
A: Our company locates in No.666, Xinbo Road, Maogang Town,
Songjiang District, Shanghai City 201606, China. It takes about one
hour from Shanghai Pudong airport or Hongqiao Airport to our
company.
Q: What does your company do regarding quality control?
A: Quality always enjoys the top priority. GoodSeaA attaches great
importance to quality control from beginning to the end.
Q: What is your after-sale service?
A: The guarantee period is 12 months from the date of the machine
installation or 15 months from the day of machine delivery. We will
take full responsibilities for the charges caused by the defects
during the guarantee period(This warranty does not cover human
damage or misuse of product).
Q: Do you offer consumables and wearing parts, too?
A: We supply all the necessary spare parts and wearing parts for
all equipments and on time.
Q: Which countries have you exported your products to?
A: Our group has been exporting our products to over sixty
countries, like Canada, the United States, Russia, Portugal,
Poland, Hungary, Turkey, South Africa, India, Singapore, the united
Arab Emirates, Egypt, Indonesia, Pakistan, Vietnam, Brazil, Peru,
Chile, Argentina etc.
Photos
